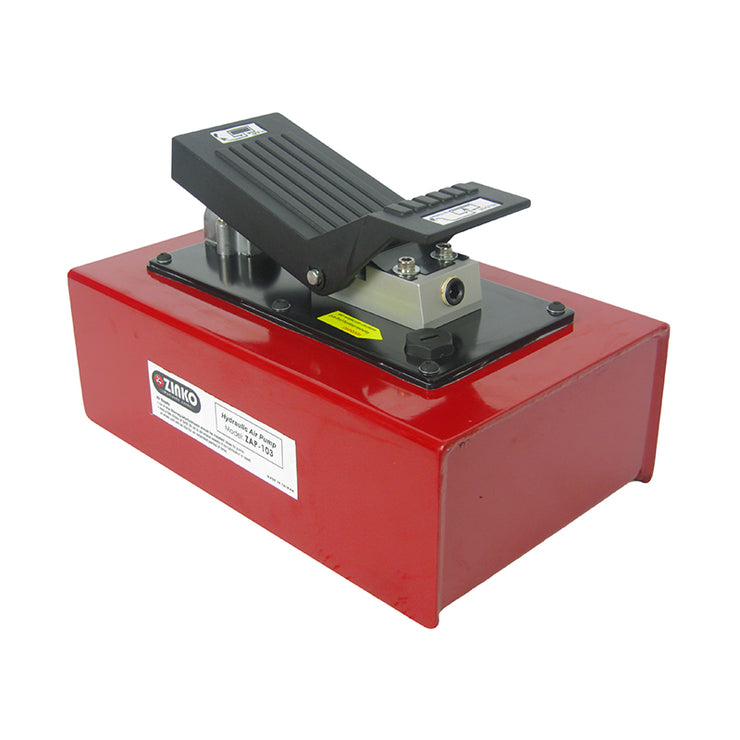

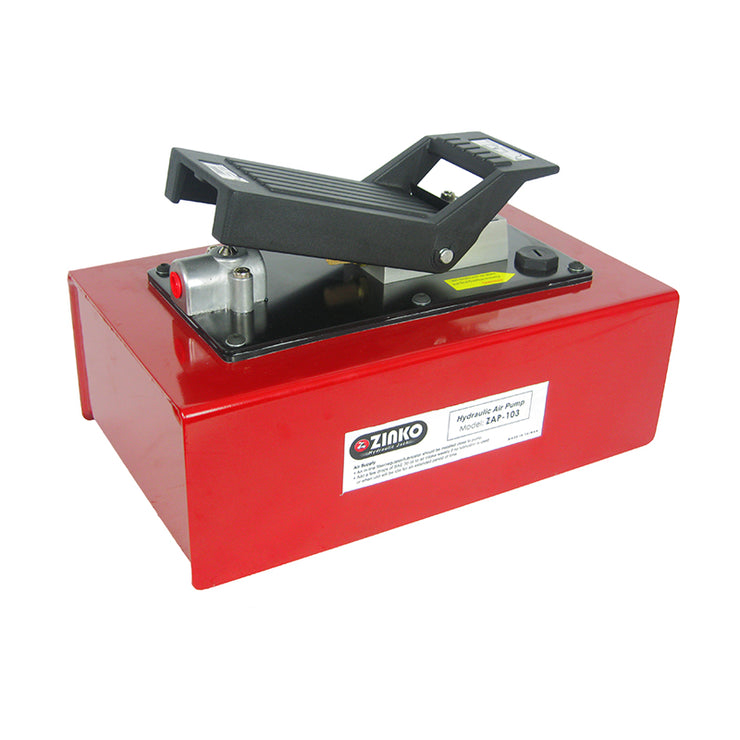

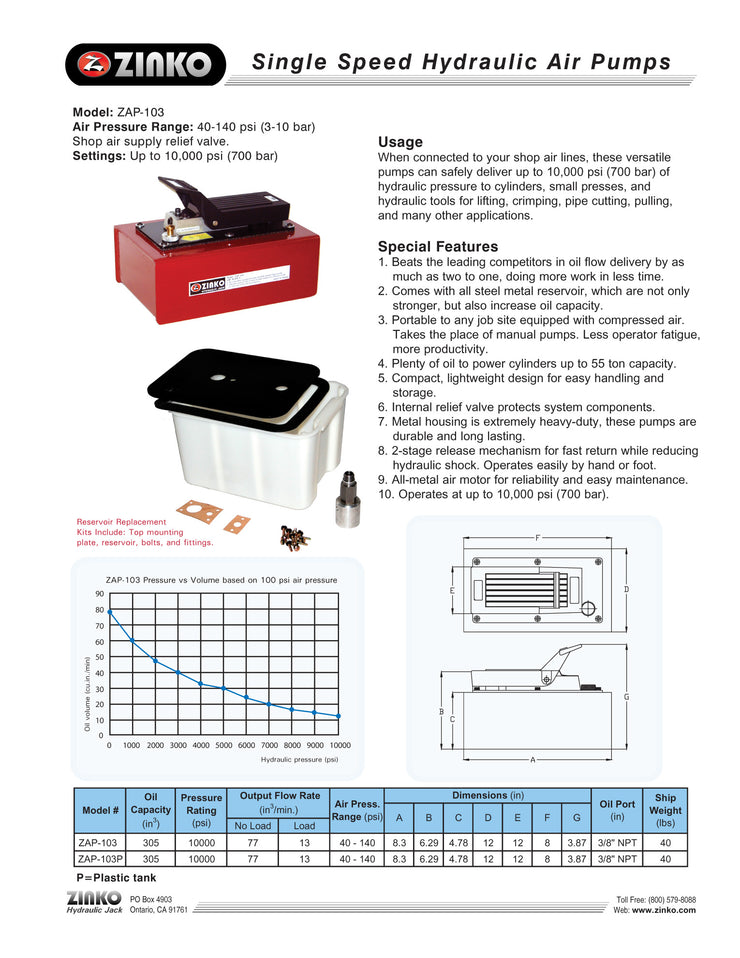

HYDRAULIC AIR PUMP (305 cu/in-5 Liter cap) MODEL: ZAP-103
$635.63
Availability : In Stock
Shipping : Ships same-day or 1-2 business days
Single Speed Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.
- Specifications
- Support & Dowloads
- Oil Capacity (in3): 305
- Pressure Rating (psi): 10,000
- Output Flow Rate (in3/min) No Load: 77
- Output Flow Rate (in3/min) Load: 13
- Air Pre Range (psi): 40-100
- Air Consumption (scfm): 10
- Sound Rate (dba): 85
- Oil Port: 3/8 NPTF
- Ship Wt.: 36 lbs.

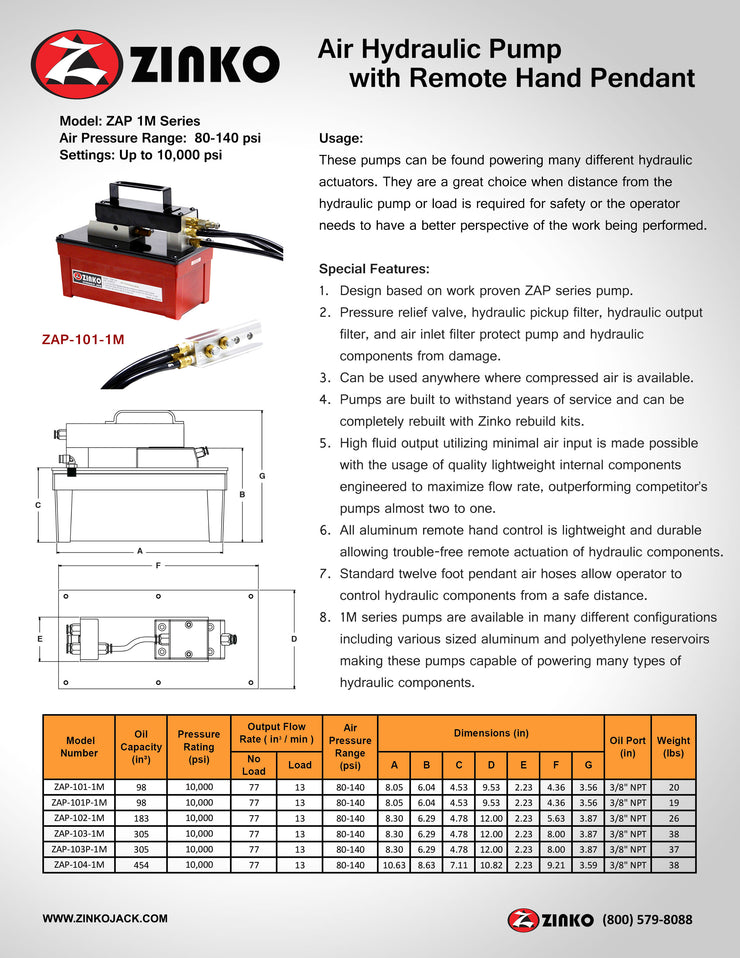

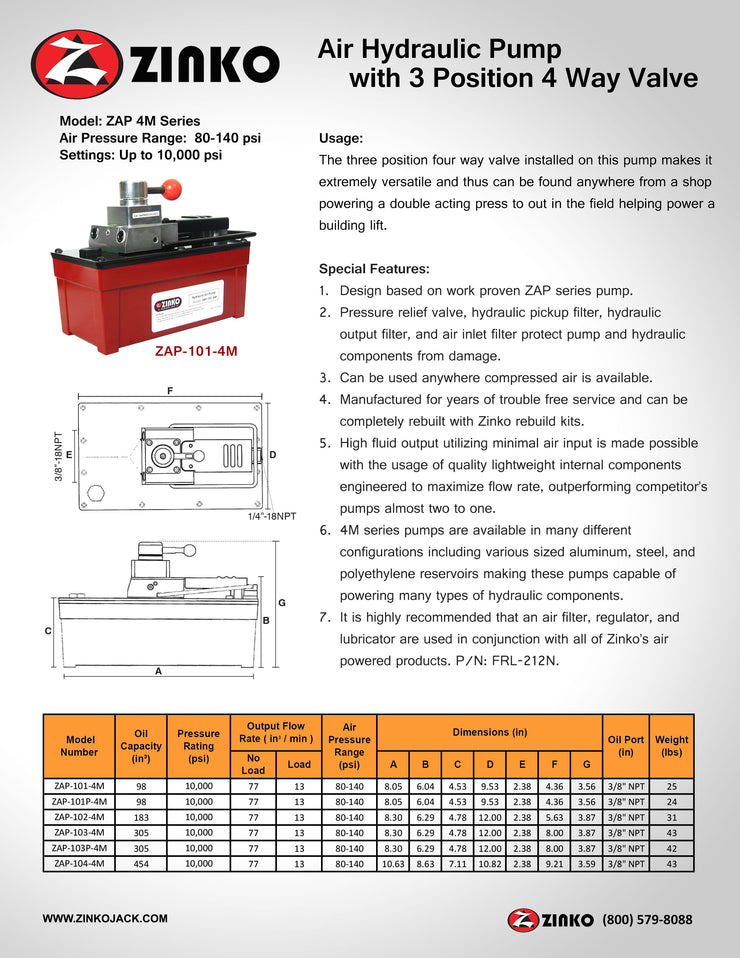

- Options: 3-way valve or 4-way 3-position valve with remote control hand pendant available upon request. (Item no. 22-103-1M or 22-103-4M)
- Related Products
Single Speed Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.
Single Speed Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.
Single Speed Air Pump With 4 Way 3 Position Valve, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.
Single Speed Remote Switch Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.
Single Speed Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.
-
1. Exclusive "air-thrust" design rapidly takes up slack, putting the cylinder rod or tool in work position within seconds.
2. Convenient 360 degree swivelhose connector for better hose control and increase the flexibility for work in any position.
3. Compact, ligh-weight design for easy handling and storage.
