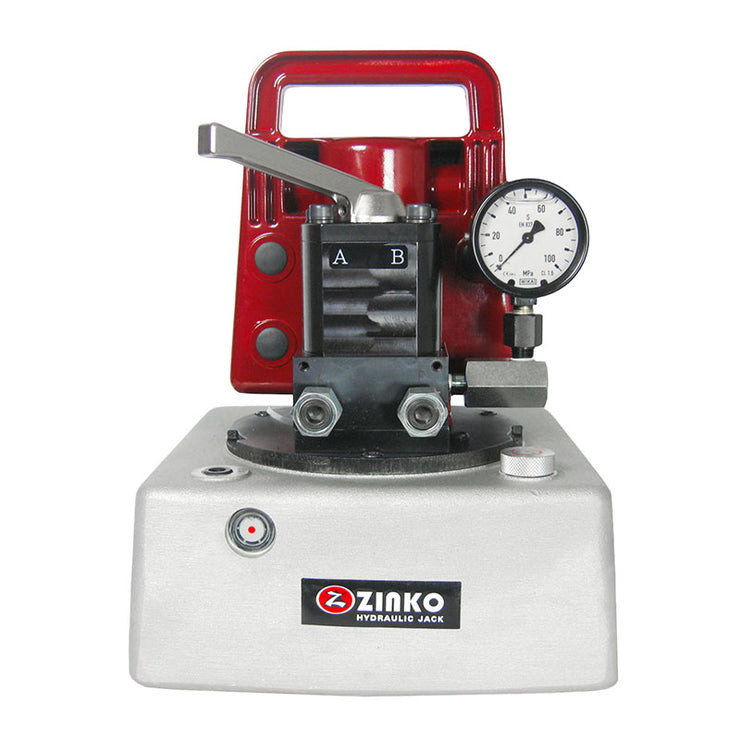

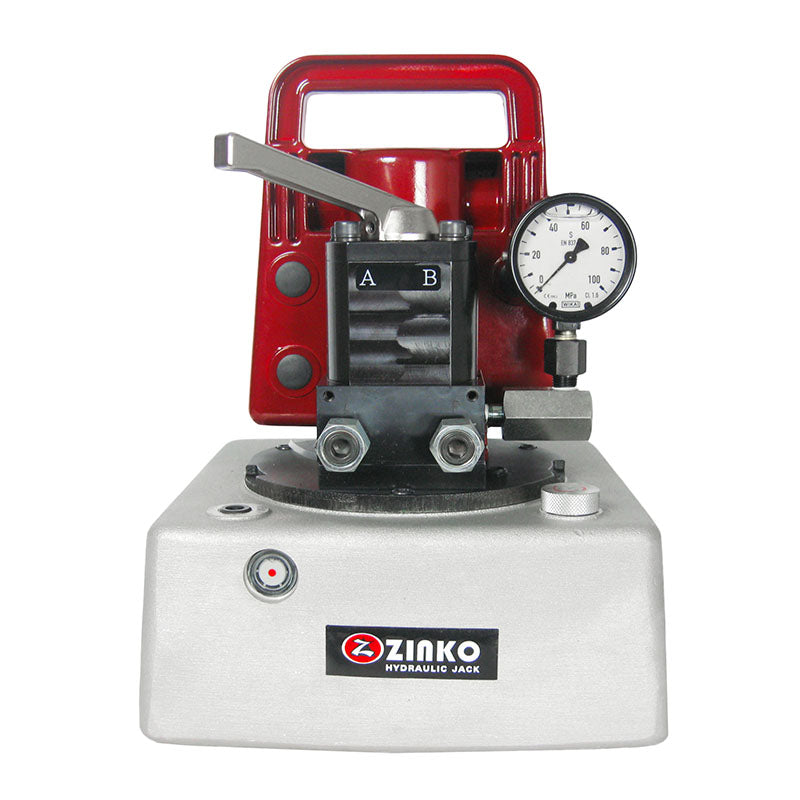

Electric Pump 0.87 HP with 2 way solenoid valve MODEL: ZPE-65SVG-4
$6,409.86
Availability : Out Stock
Shipping : Ships same-day or 1-2 business days
Electric Pump, 4-way 3-position manual valve (Advance/Hold/Retract positions), 0.8 gal oil tank, compatible with double acting cylinders. Operates on 110V AC input.
Double Acting ram is actuated by 4-way manual valve. Fitted with pressure gauge.
110V Electric motor, 50/60Hz single phase commutator type, insulation "E". Max. 9.5 Amp>/strong>
- Specifications
- Support & Dowloads
Electric Pump, 4-way 3-position manual valve (Advance/Hold/Retract positions), 0.8 gal oil tank, compatible with double acting cylinders. Operates on 110V AC input.
Double Acting ram is actuated by 4-way manual valve. Fitted with pressure gauge.
110V Electric motor, 50/60Hz single phase commutator type, insulation "E". Max. 9.5 Amp>/strong>
- Oil Capacity (in3): 0.8 gal
- Usable Oil Capacity (in3): 0.53 gal.
- Motor: Type E. 110AC, 0.87 HP
- Pressure Rating (psi)1st stage: 1015
- Pressure Rating (psi)12nd stage: 10,000
- Output Flow Rate (in3/min) 1st stage: 244
- Output Flow Rate (in3/min) 2nd stage: 26
- Valve Type: 2 way solenoid normally closed valve.
- Oil Port: 3/8 NPTF
- Ship Wt.: 42 lbs.
- Options: 4-way 3-position valve with remote control hand pendant available upon request. (Model no. 24-65SVG-7)
