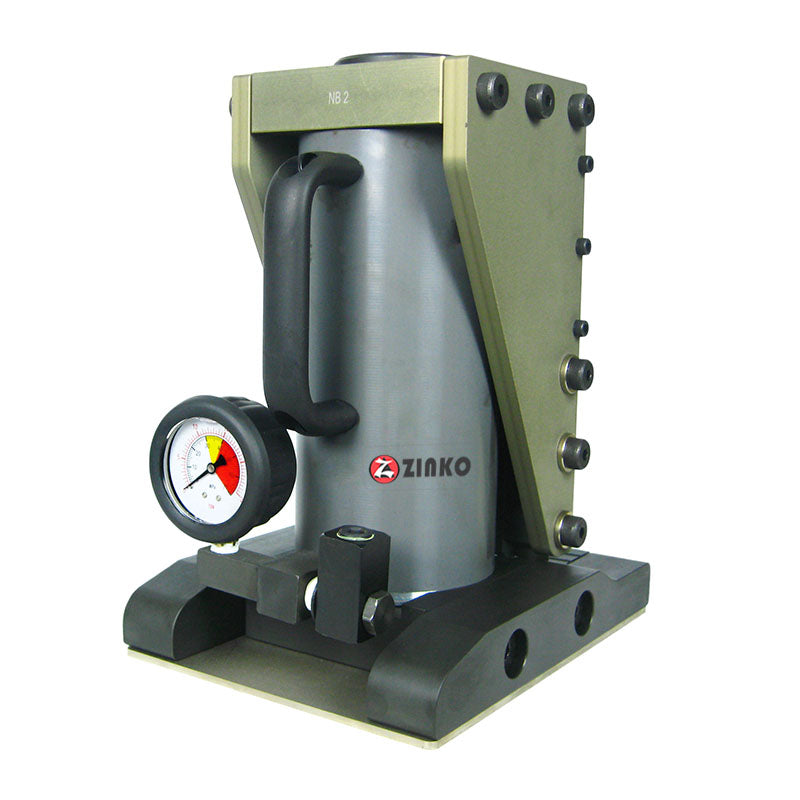

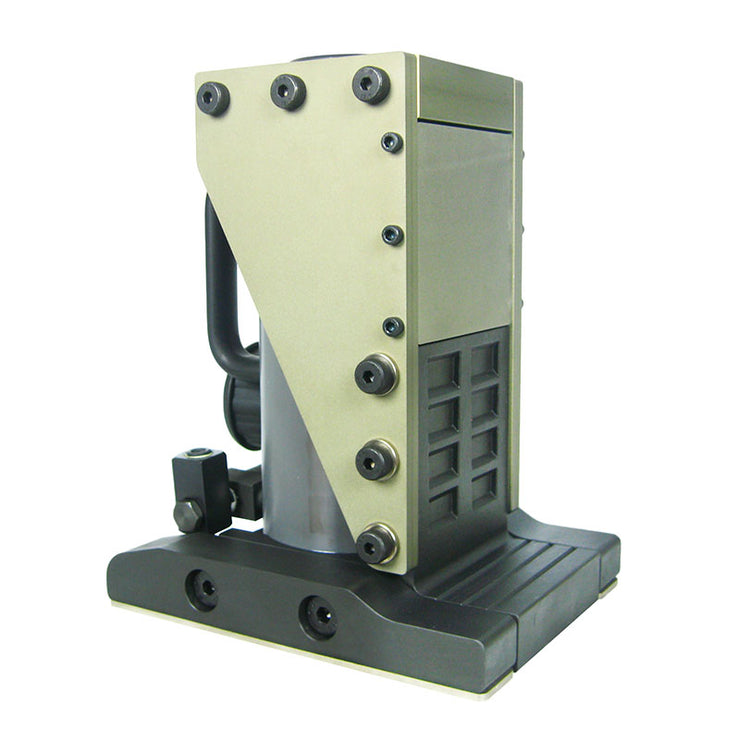

HYDRAULIC TOE CYLINDER - 15 TON MODEL: RHC-15A

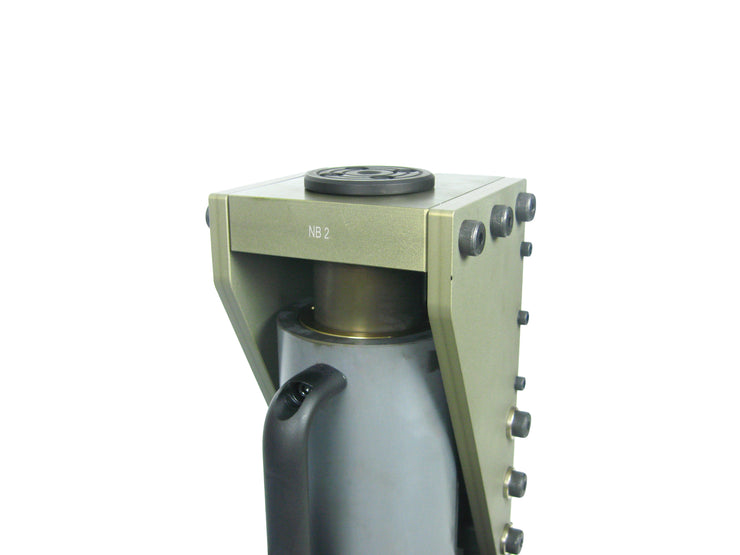

The RHC-15A hydraulic toe cylinder provides an expanded 15-ton lifting capacity, tailored for heavy rigging, bridge maintenance, and large-scale industrial assembly. Utilizing a rugged aluminum body to improve jobsite portability without compromising strength, the unit delivers 4.92" of controlled lift from either the top saddle or the toe. A low 1.18" starting toe clearance makes it practical to engage low-profile machinery and tight structural pick points. Powered through an external manual or pneumatic pump, the remote hydraulic connection allows technicians to direct heavy positioning and leveling work from an optimal vantage point and a comfortable working distance.

Features:

• Engineered for optimal access in constrained environments, this model acts as an essential tool for industrial machinery installation, emergency operations, construction work, and shipyard tasks.
• Built with a lightweight yet durable aluminum cylinder, this unit offers exceptional portability without compromising on long-term performance or structural integrity.

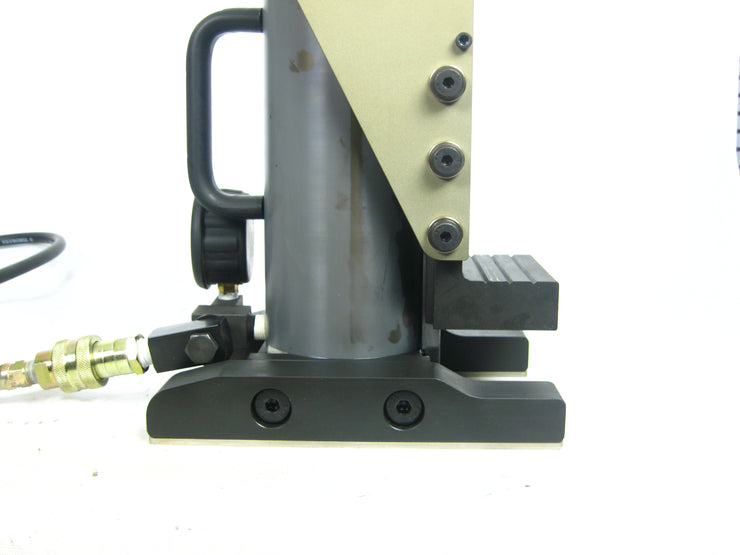

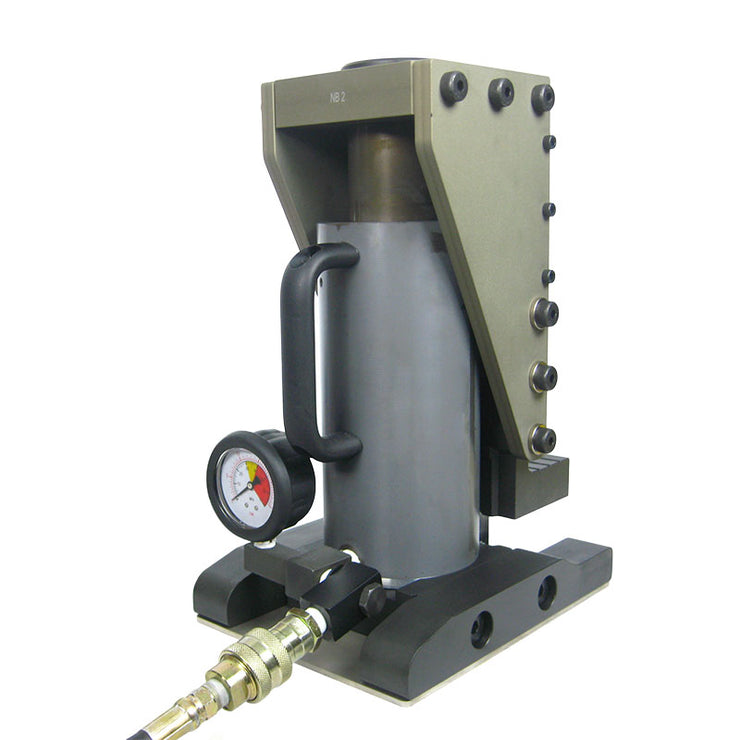

• Designed for versatility, these toe cylinders easily connect to any standard hand or air pump. This setup provides operators with full, remote control over the lift, ensuring safety and precision in situations where close-quarters operation is not feasible.




Specifications:

• Capacity: 15 Ton
• Min Ht (Toe/Head): 1.18"/ 14.33"
• Max Ht (Toe/Head): 6.10"/ 19.25"
• Ram Lift: 4.92"
• Toe Area: 2.34" x 3.70"
• Base Area: 10.92" x 9.36"
• Ship Wt.: 63 lbs.
