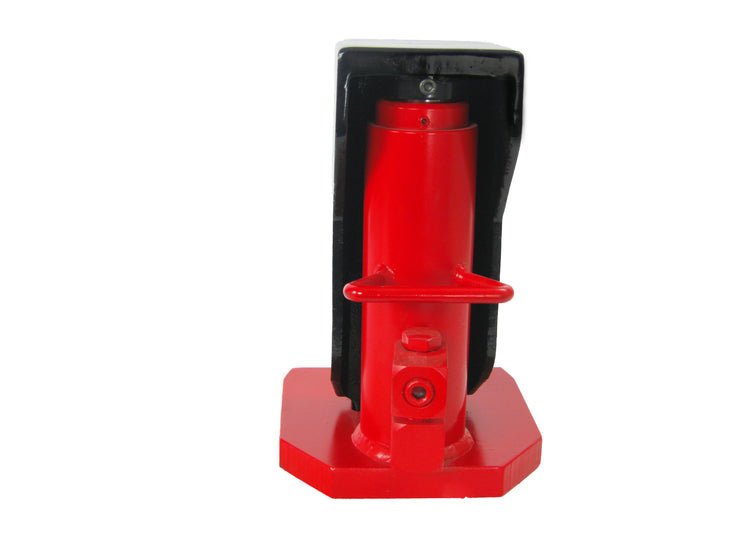

HYDRAULIC TOE CYLINDER - 5 TON MODEL: RHC-5

The RHC-5 hydraulic toe cylinder is engineered for lifting heavy machinery, structural elements, and industrial equipment in confined environments. Built with a solid steel body for dependable durability, the unit delivers a full 5-ton capacity across a 4.92" stroke using either its top saddle or low-profile toe. A starting pickup height of just 0.87" provides practical access under tight ground clearances where conventional lifting points are inaccessible, while a stable 7.12" x 7.12" base keeps loads secure during operation. Designed for remote actuation via standard external hydraulic hand or air pumps, it allows technicians to manage difficult rigging, alignment, and equipment positioning tasks safely away from the load.

Features:

• Featuring the market’s lowest reach at 0.87 inches, this hydraulic toe cylinder offers exceptional access for applications where space is extremely limited.
• Constructed with a durable steel cylinder for maximum strength and long-lasting performances
• Designed for versatility, these toe cylinders easily connect to any standard hand or air pump. This setup provides operators with full, remote control over the lift, ensuring safety and precision in situations where close-quarters operation is not feasible.




Specifications:

• Capacity: 5 Ton
• Min Ht (Toe/Head): 0.87"/ 11.75""
• Max Ht (Toe/Head): 5.79"/ 16.67"
• Ram Lift: 4.92"
• Toe Area: 2.25" x 2.88"
• Base Area: 7.12" x 7.12"
• Ship Wt.: 45
