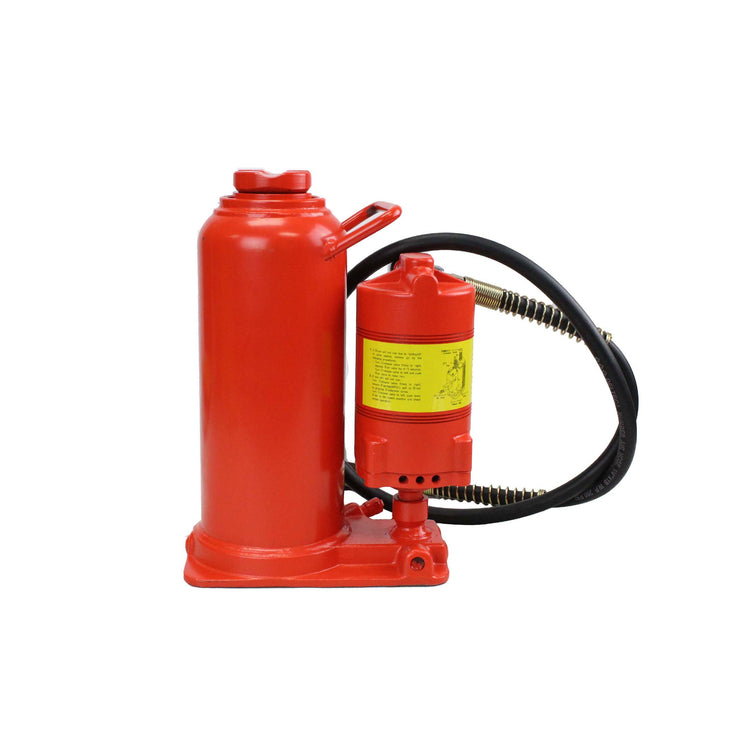

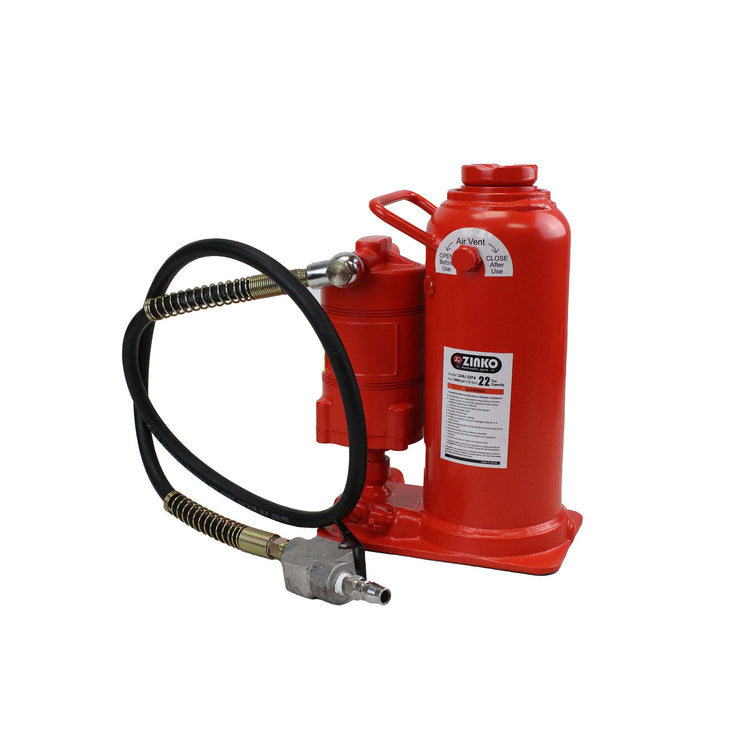

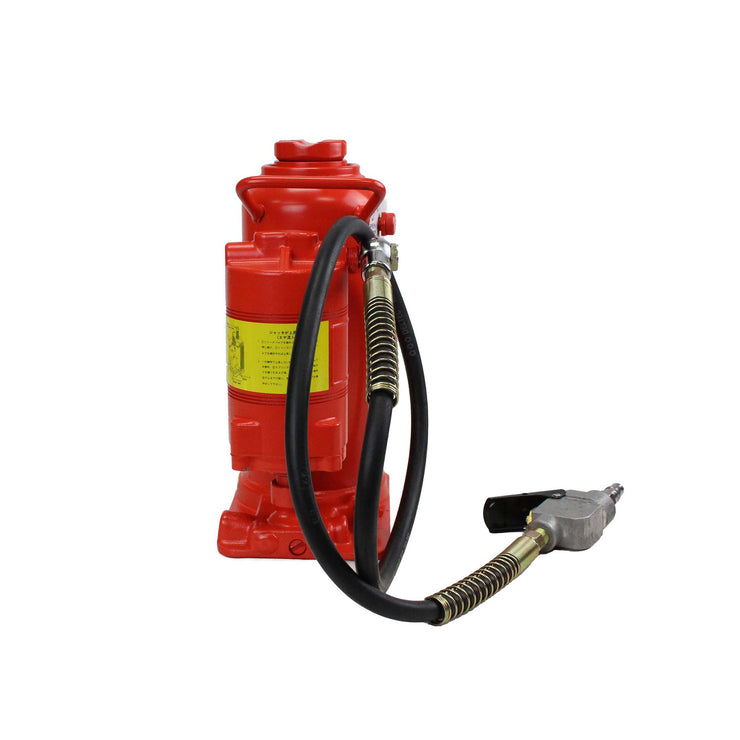

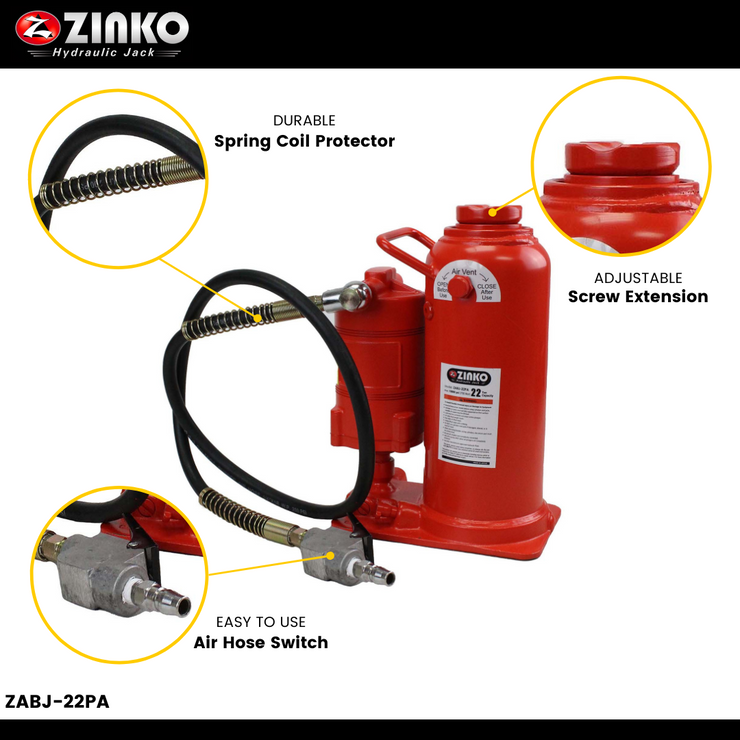

AIR HYDRAULIC BOTTLE JACK 22 TON MODEL: ZABJ-22PA

$482.00

Availability : Out Stock

Shipping : Ships same-day or 1-2 business days

Air Hydraulic Bottle Jack. 22 ton, Air Pressure Range 40-140 psi
Turn ordinary manual bottle jack power into air-hydraulic power.
When connected to your shops air lines, these versatile jacks can safely deliver lifting power with the ease of a button to lift heavy beams, machines, platforms, and other objects.


Made in Japan




    • Capacity: 22 Ton
    • Min Ht: 10.5"
    • Max Ht. 19.5"
    • Ram Lift: 6"
    • Screw Extension: 3"
    • Base Area: 7" x 4.75"
    • Air Pressure (PSI): 40-140
    • Ship Wt.: 36 lbs.
    • Repair Kits (jack): 9010220 (Click to order)
    • Repair Kits (pump): 9060667-RP (Click to order)

PDF download

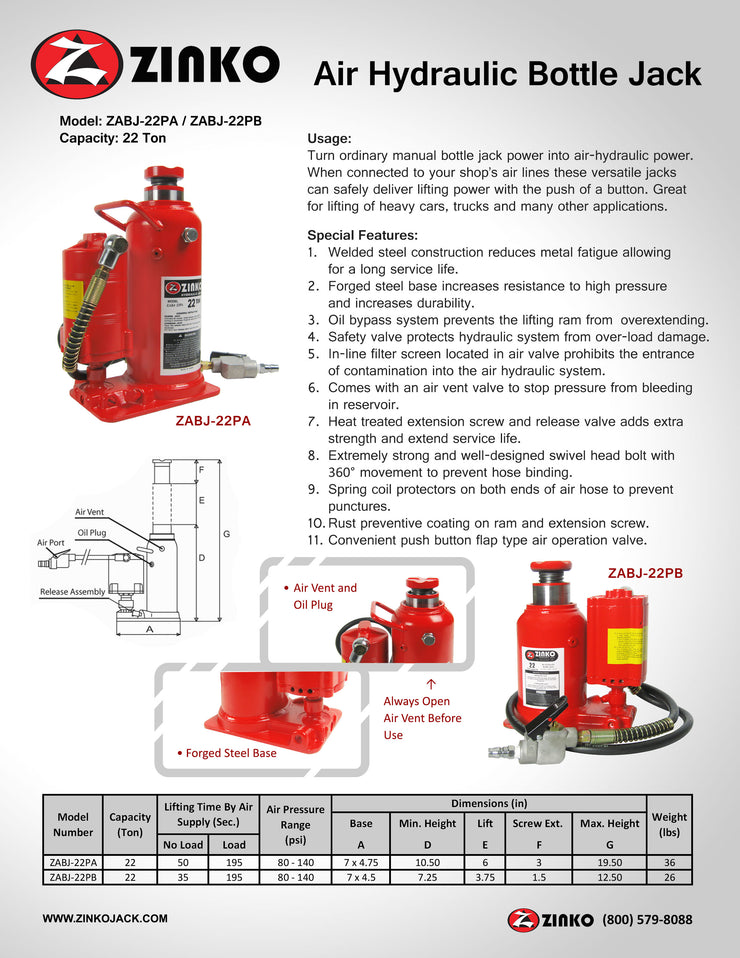

Single Page Spec. Sheet

User Manual

Repair Part breakdown
