Precision and efficiency are critical in aviation maintenance and ground handling. Helicopters require reliable lifting solutions to ensure safe and effective servicing. The ZT-DL Telescoping Bottle Jack is designed to meet these demands with superior hydraulic performance and ease of operation.

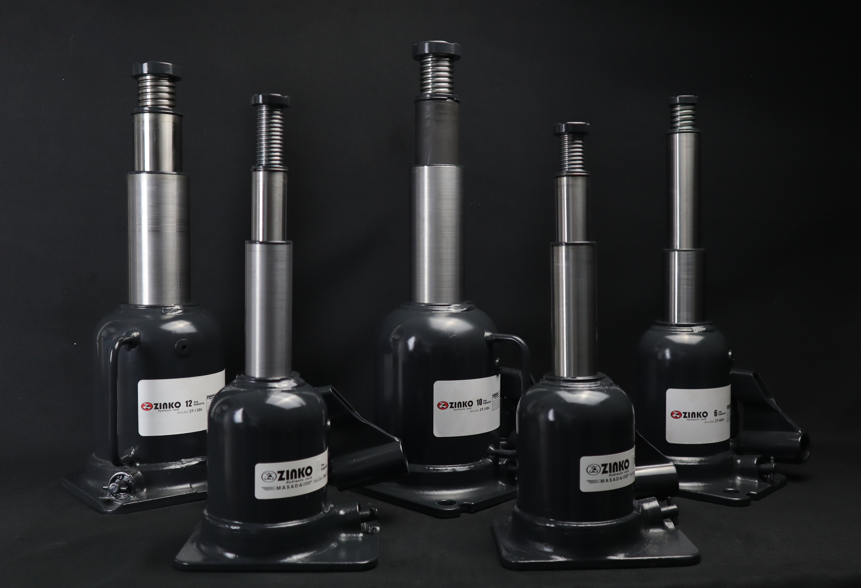

ZT-DL Series Bottle Jack in the Aviation Industry

We partnered with a leading aircraft ground handling equipment manufacturer to develop a customized lifting solution for helicopter maintenance, repair, and inspection. Unlike traditional jacks, the ZT-DL Telescoping Bottle Jack Series extends to greater heights with less effort, reducing the need for frequent adjustments and increasing productivity. Engineered for efficiency and safety, the ZT-DL Series is the ideal choice for aviation ground support operations.


Model Number Capacity (ton) Pump Direction

Min Height (inches), A

Ram Lift (inches), B Max Height (inches), C Base Area (inches) Weight (lbs)
ZT-03DL 3 VERTICAL 5.55 10.23 15.78 6.18×5.35 11
ZT-06DL 6 VERTICAL 6.45 10.78 17.23 6.31×5.55 12
ZT-10DL 10 VERTICAL 7.63 14.10 21.73 7.08×6.88 22
ZT-12DL 12 HORIZONTAL 7.58 12.69 20.27 5.98×8.26 26



As part of this collaboration, the ZT-DL bottle jacks were seamlessly integrated into a custom-built hydraulic system within a specialized helicopter dolly. Designed to streamline maneuvering and positioning, this system enhances operational efficiency while maintaining the highest safety standards. By integrating our hydraulic bottle jacks, ground crews experience reduced turnaround times and improved handling precision.


Versatile Applications of ZT-DL Series Bottle Jacks

The ZT-DL Series bottle jacks are not limited to aviation—they excel in a variety of industries requiring reliable hydraulic lifting solutions. Key applications include:


Wind Turbine Installation and Maintenance

The ZT-DL bottle jack assists in securing wind turbine components during installation, allowing for precise control and improved safety measures.

Solar Panel Installation

A mobile solar panel positioning system equipped with the ZT-DL jack facilitates lifting panels to the correct height and angle, reducing labor costs and installation time.

Marine and Shipyard Applications

These hydraulic jacks support shipbuilding and maintenance operations by positioning heavy machinery, engines, and structural components with precision.

Emergency Response and Disaster Relief

In rescue situations, portable hydraulic jacks provide emergency response teams with a reliable tool for lifting debris, creating access points, and improving safety during disaster recovery efforts.



Commitment to Hydraulic Innovation

Our collaboration with aviation industry leaders is just one example of how our hydraulic solutions enhance ground handling operations. We remain dedicated to developing high-performance hydraulic products that serve multiple industries, ensuring safer and more efficient operations worldwide.



To learn more about how the ZT-DL Series bottle jacks can enhance your operations, contact us today.
