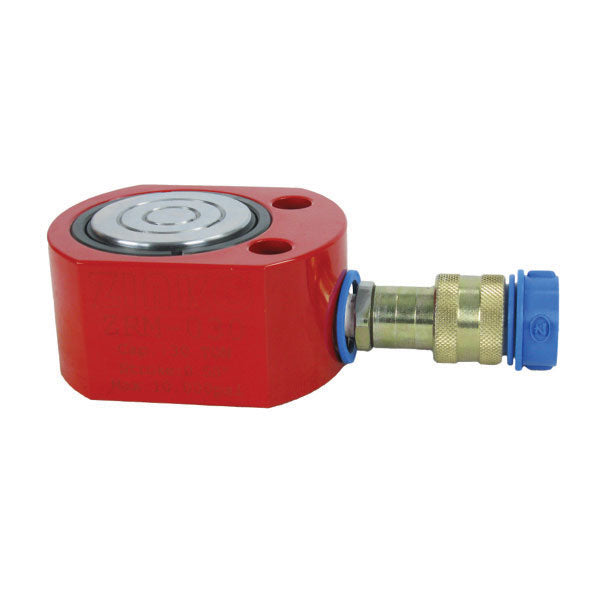

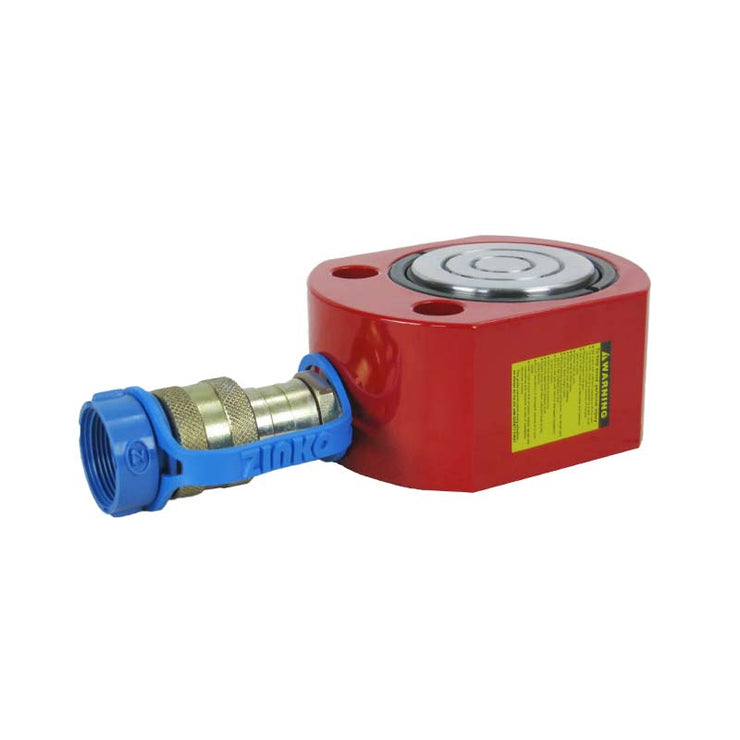

ZRM-030: 30 TON 0.5"

Designed for heavy industrial rigging and maintenance, the Zinko ZRM-030 delivers 30 tons of force from a low-height frame. This 10 lb cylinder stands 2.28" tall when collapsed and extends to a maximum height of 2.79" via a 0.51" stroke, making it a highly mobile solution for confined pushing and lifting tasks. It operates at any angle and features base mounting holes for secure anchoring alongside a grooved plunger end that holds heavy loads firmly under pressure without requiring a bulky saddle attachment. A high-flow 3/8" NPT coupler and dust cap are included for quick setup and debris protection.

Multiple applications for many different fields that require single-acting cylinders.

• Capacity: 30 Ton
• Stroke: 0.51"
• Oil Capacity: 3.35in³
• Min Ht: 2.28"
• Max Ht. 2.79"
• Outside Diameter (in): 4.63" X 3.75"

• Cylinder Effec. Area: 6.52in²
• Ship Wt.: 10 lbs.
