ZRM-100: 100 TON 0.63"

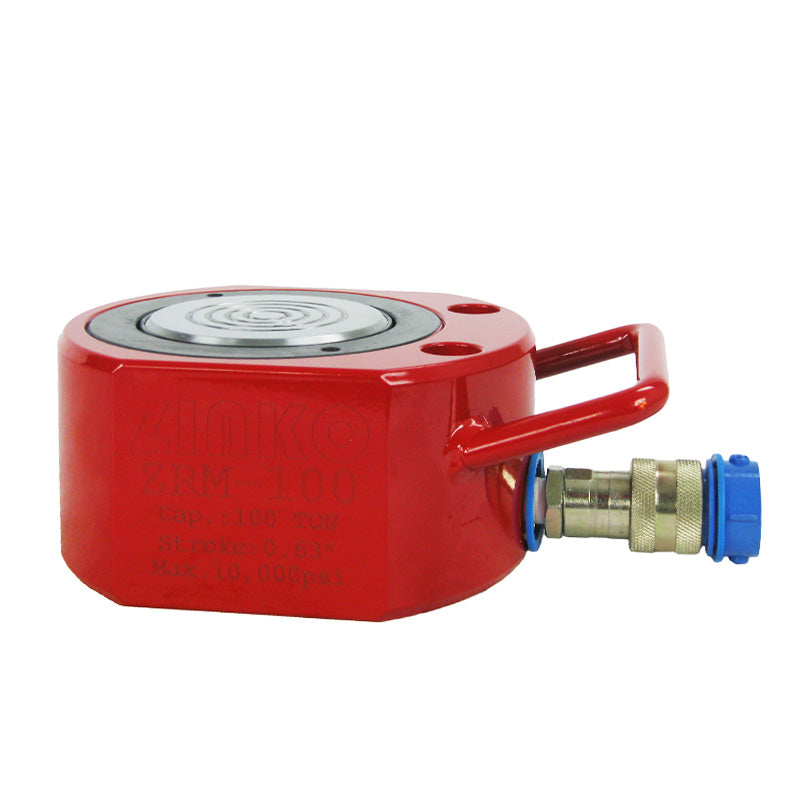

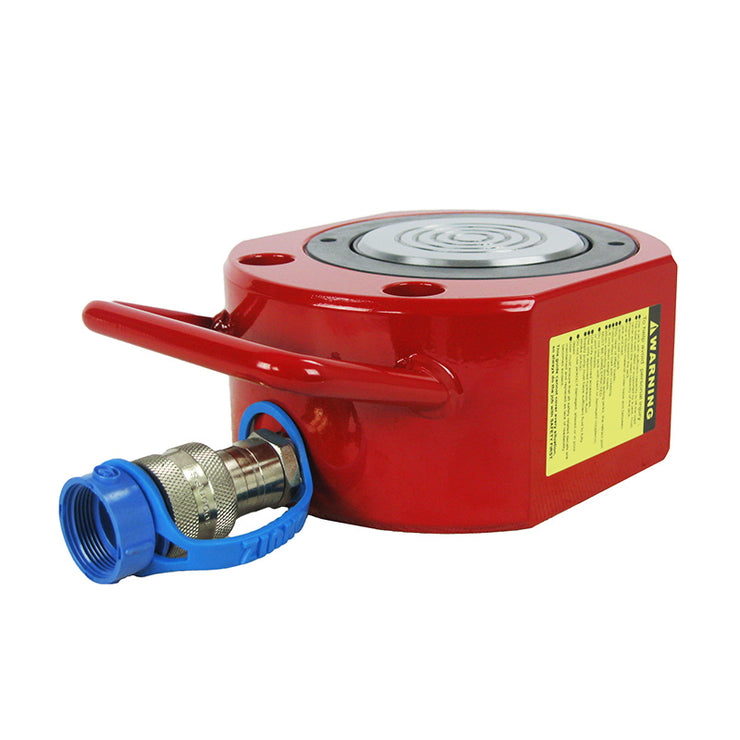

As the highest-capacity model in the series, the Zinko ZRM-100 delivers 100 tons of single-acting force while maintaining a remarkably low-profile stance. Standing just 3.34" tall when collapsed, it provides a precise 0.63" stroke to fit clearance zones that standard high-tonnage jacks cannot clear. The 34 lb cylinder operates reliably in any orientation, utilizing built-in base mounting holes for direct fixture attachment and a specialized grooved plunger end that locks onto massive loads safely without an independent saddle. A high-flow 3/8" NPT coupler and protective dust cap come standard to allow quick setup and maintain system cleanliness.

Multiple applications for many different fields that require single-acting cylinders.

• Capacity: 100 Ton
• Stroke: 0.63"
• Oil Capacity: 12.39in³
• Min Ht: 3.34"
• Max Ht. 3.97"
• Outside Diameter (in): 7.00" X 6.00"

• Cylinder Effec. Area: 19.63in²
• Ship Wt.: 34 lbs.
