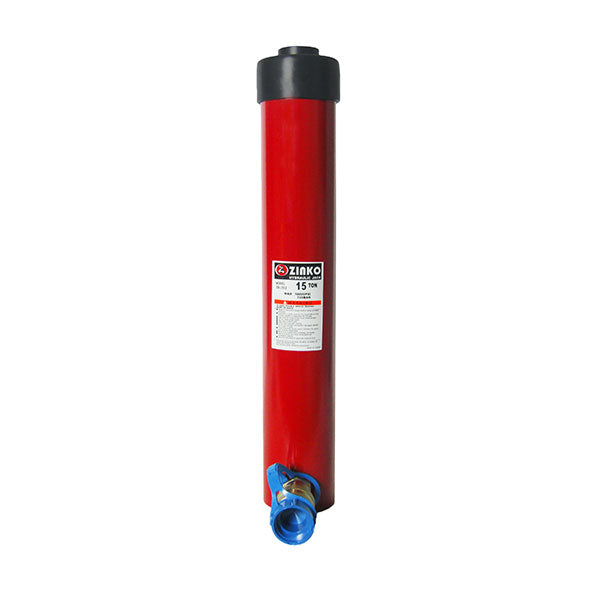

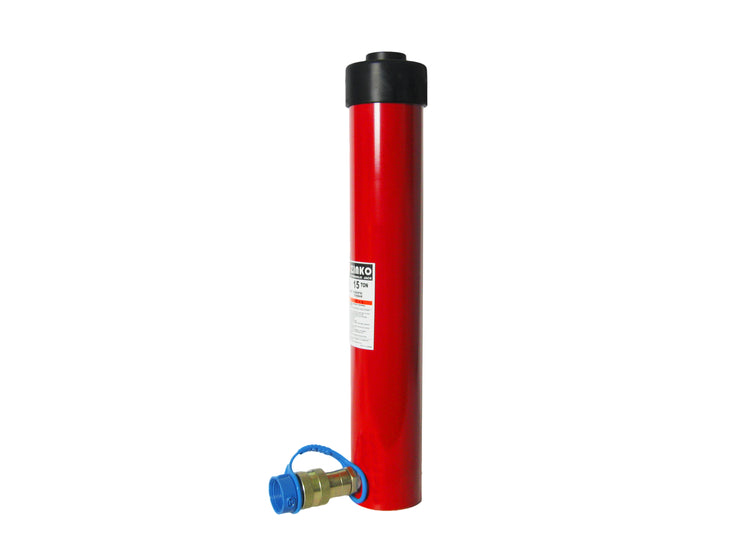

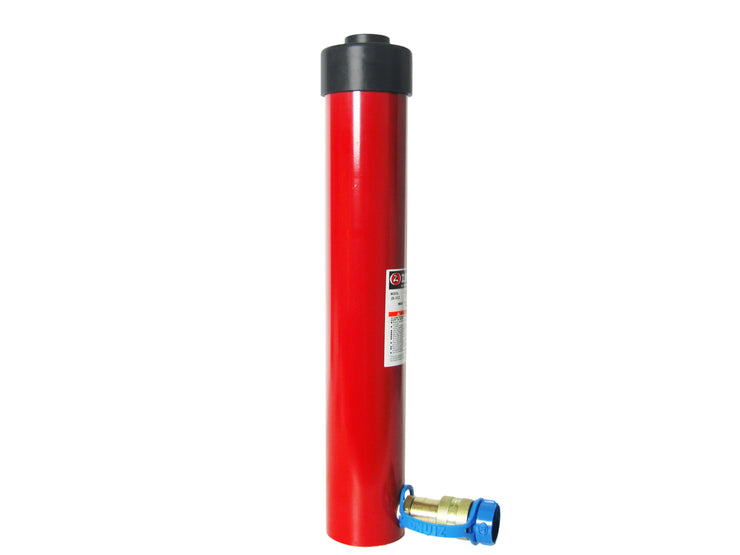

ZR-1512: 15 TON 12" cylinder

The ZR-1512 provides a 12" stroke in the 15-ton class, suited to work requiring long plunger travel — deep-reach lifting, extended pushing, or bending applications where a shorter-stroke cylinder wouldn't cover the distance. It's built for shop, agricultural, automotive/truck service, and construction maintenance use, rated to 10,000 psi (700 bar), and runs on hand, air, or electric pump power.

Construction includes a chrome-plated, high-strength alloy steel piston rod for wear and corrosion resistance, with polyurethane seals and wipers to limit contamination. A hardened saddle prevents plunger jamming and slippage under load, a steel top stop ring guards against blow-out across the full stroke, and a one-piece copper ring cradles the rod to absorb eccentric and side loading. A heavy-duty return spring keeps retraction fast and consistent, the cylinder operates in any position, and a baked enamel finish adds further corrosion protection.
