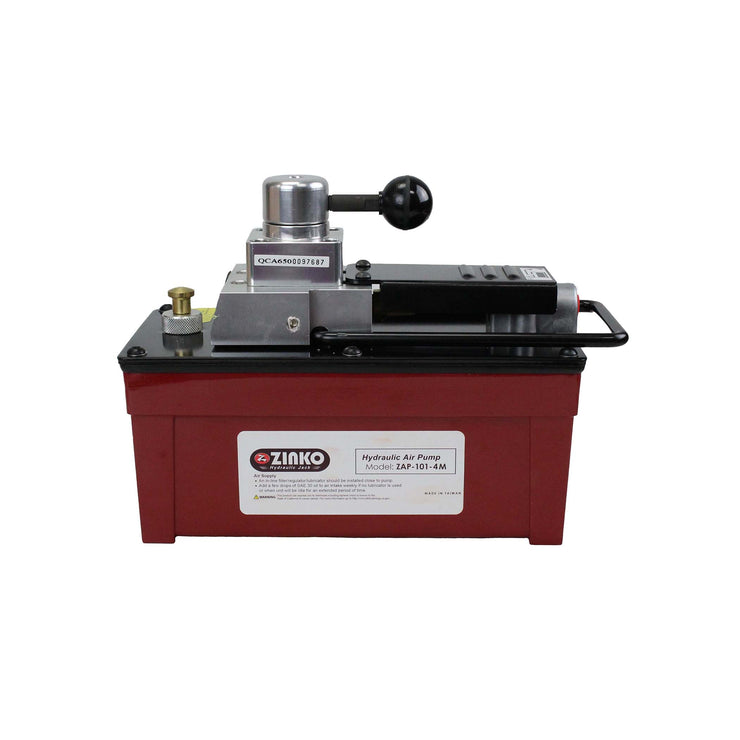

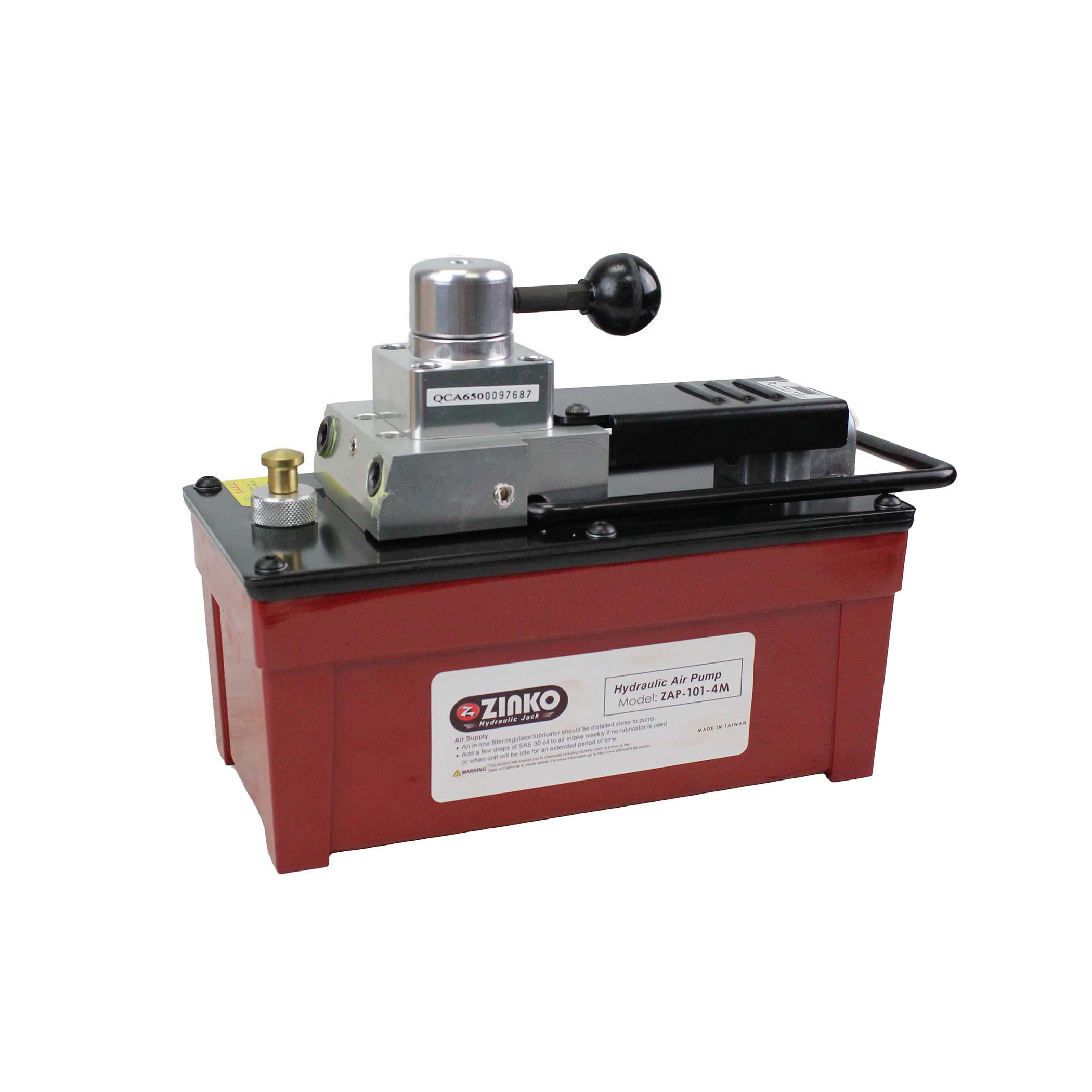

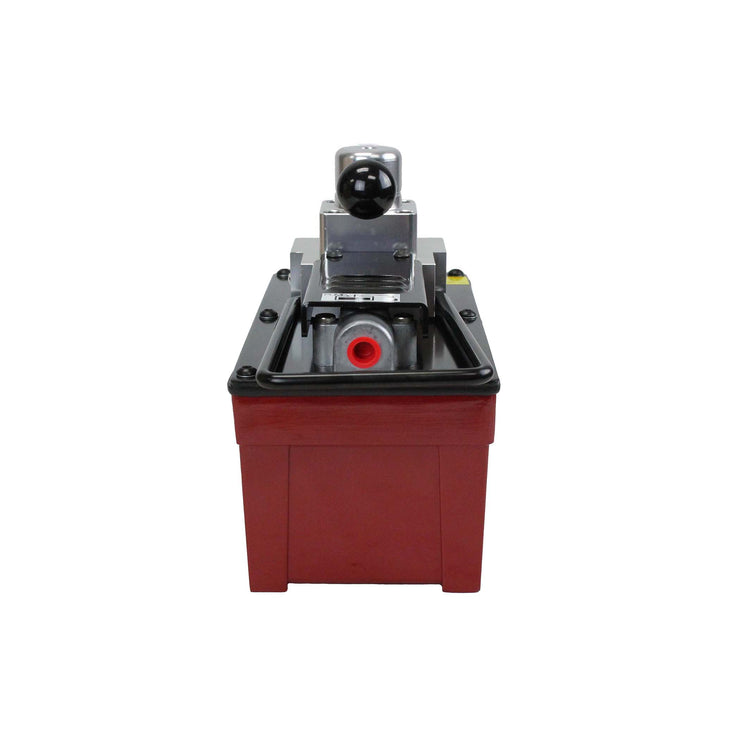

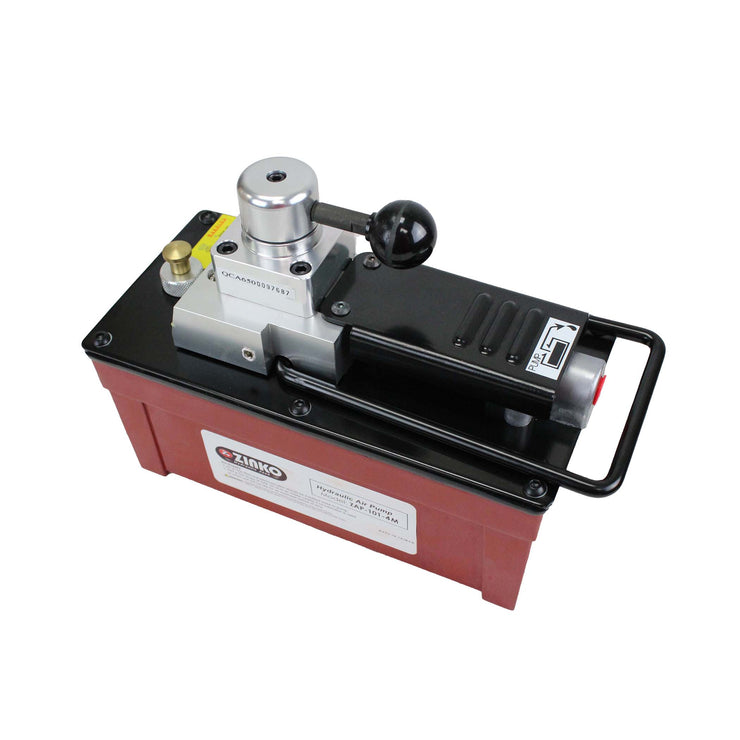

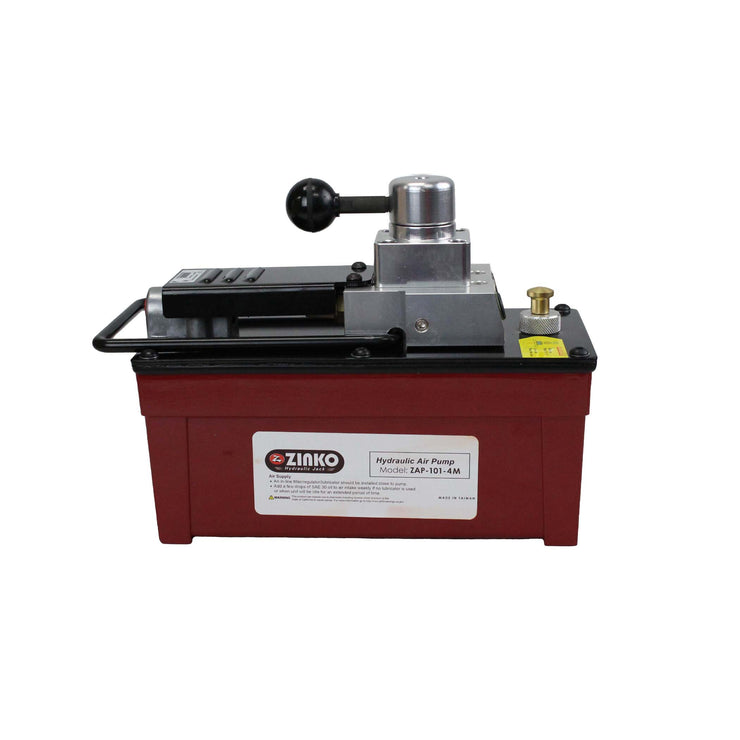

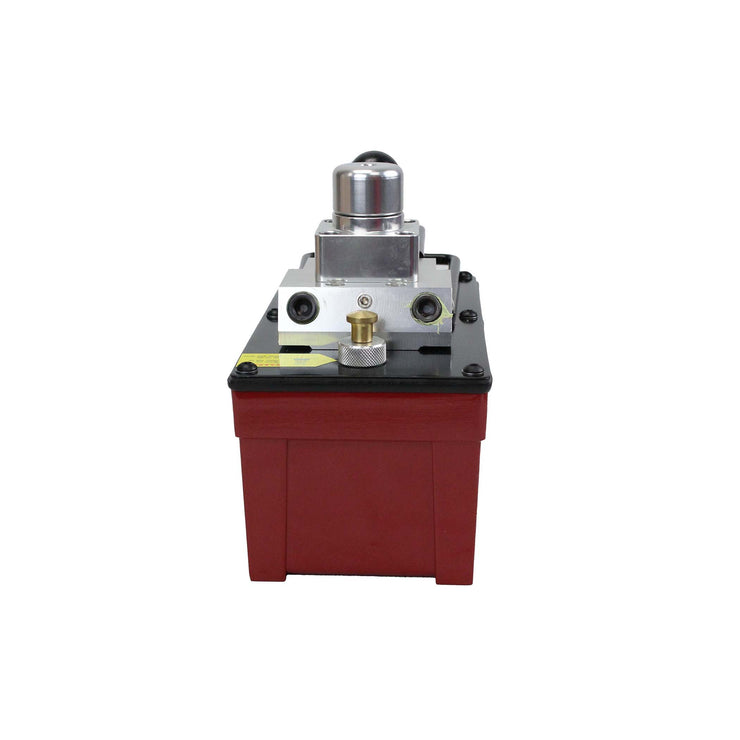

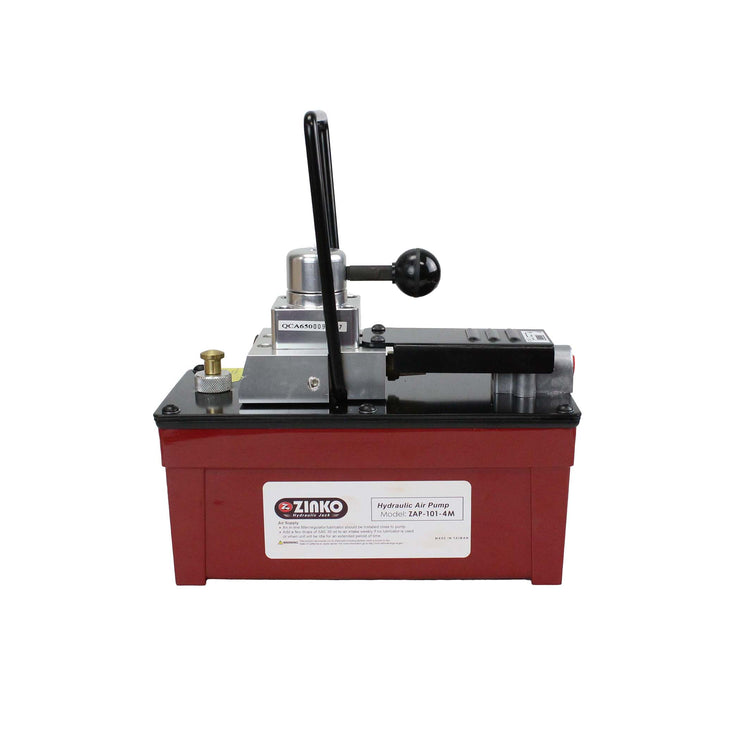

HYDRAULIC AIR PUMP With 4 Way 3 Position Valve (100 CU/IN) MODEL: ZAP-101-4M


Availability : In Stock

Shipping : Ships same-day or 1-2 business days

Single Speed Air Pump With 4 Way 3 Position Valve, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.

  • Oil Capacity (in3): 98
  • Pressure Rating (psi): 10,000
  • Output Flow Rate (in3/min) No Load: 77
  • Output Flow Rate (in3/min) Load: 13
  • Air Pre Range (psi): 40-100
  • Air Consumption (scfm): 10
  • Sound Rate (dba): 85
  • Oil Port: 3/8 NPTF
  • Ship Wt.: 60 lbs.

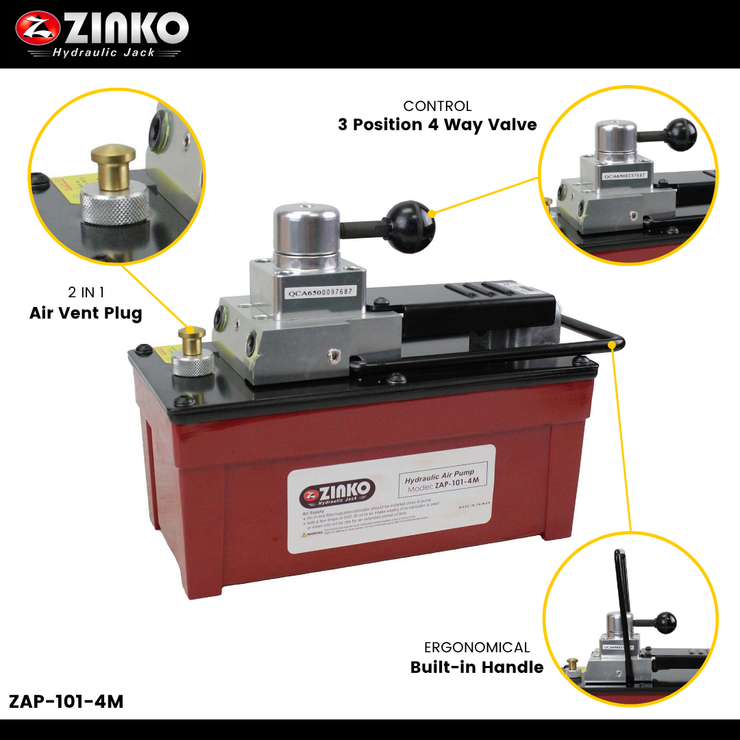

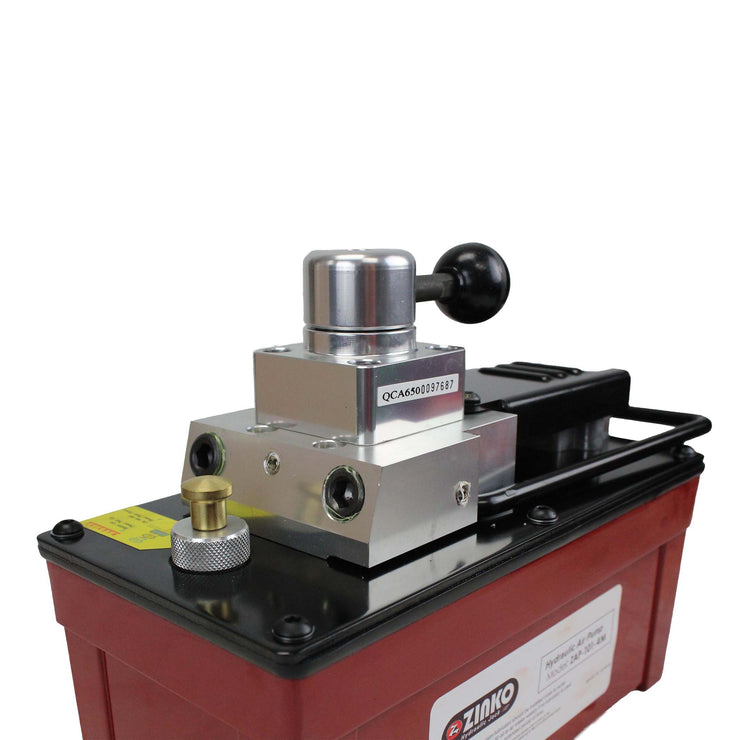

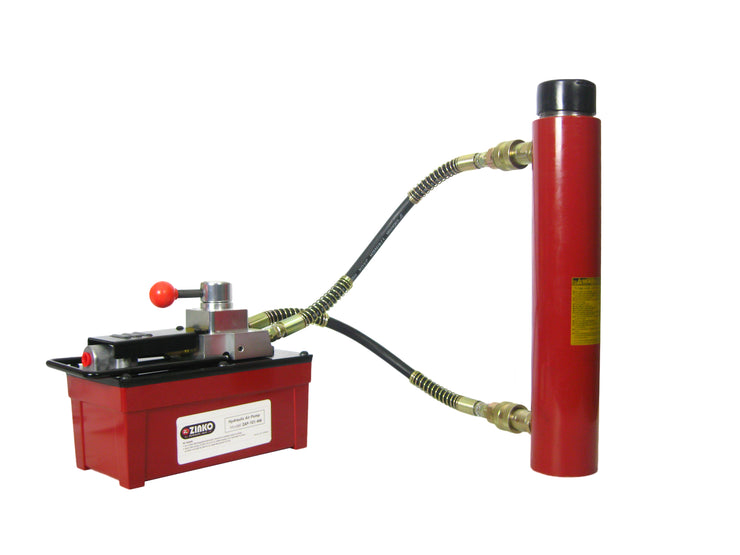

  • Details: The three position four way valve installed on this pump makes it extremely versatile and thus can be found anywhere from a shop powering a double acting press to out in the field helping power a building lift.
  • Options: Reservoir with see through windows, or plastic reservoir will be available upon request. (Item no. 22-101V or 22-101P)
  • Options: ZAP-102-4M, 103-4M, 104-4M model also available upon request.
