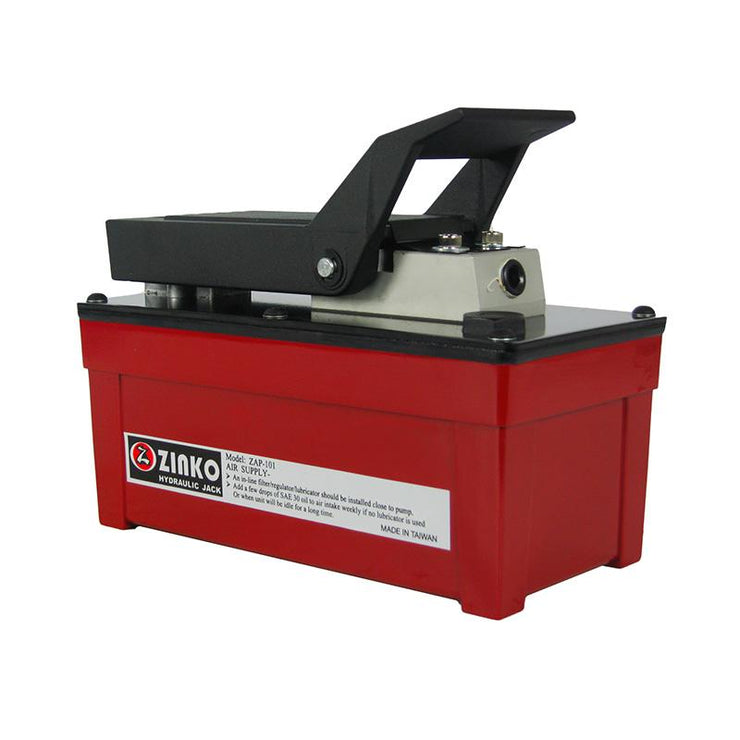

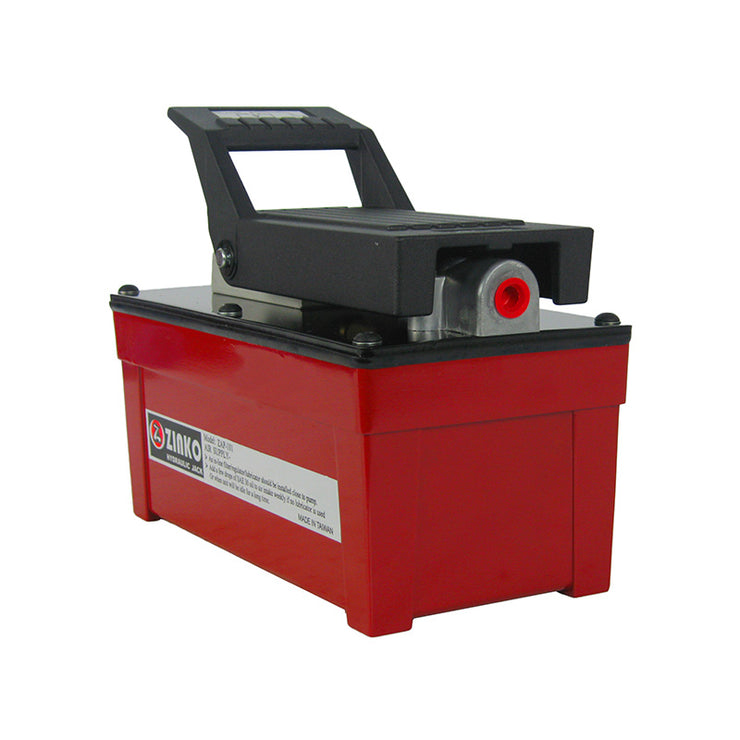

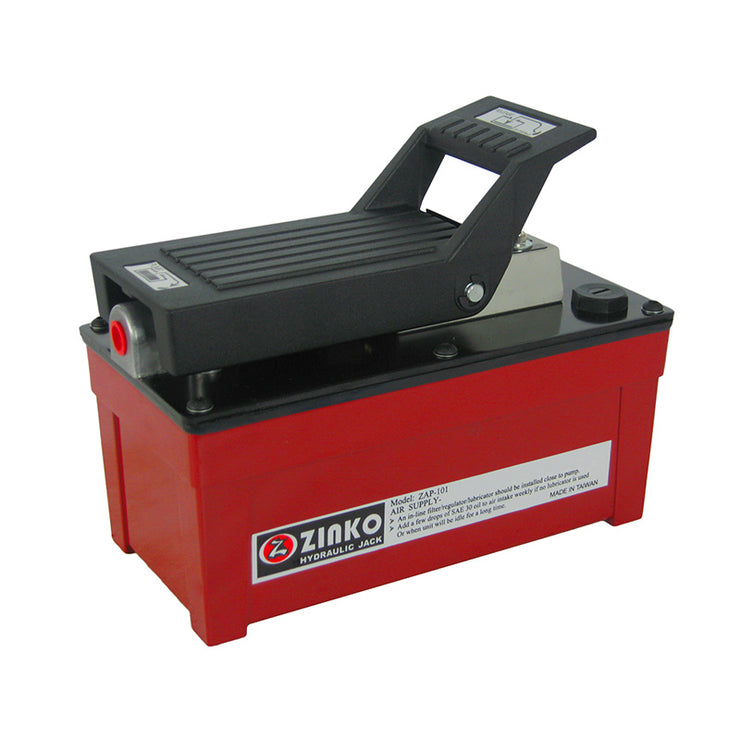

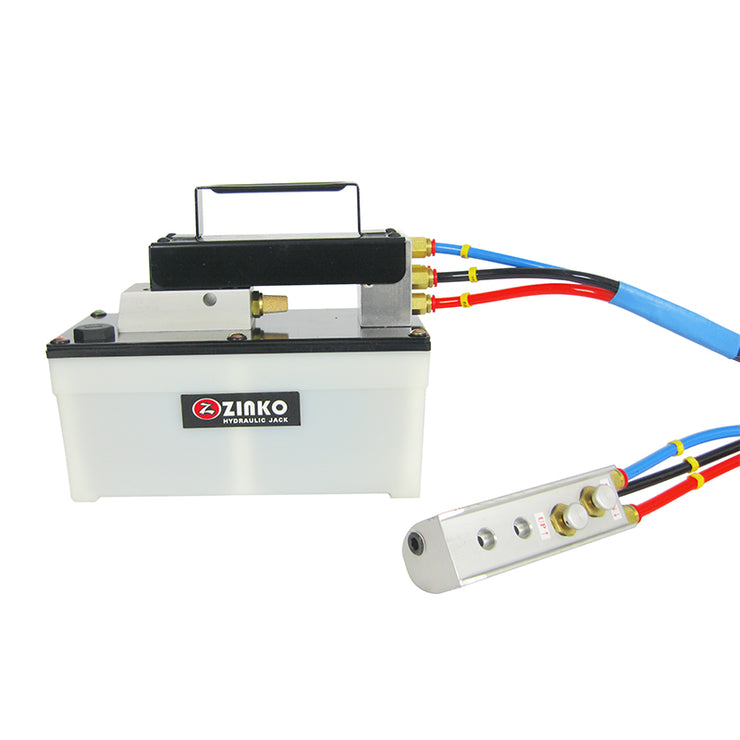

HYDRAULIC AIR PUMP (100 CU/IN)
MODEL: ZAP-101

$381.90

Availability : In Stock

Shipping : Ships same-day or 1-2 business days

Single Speed Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.




  • Oil Capacity (in3): 98
  • Pressure Rating (psi): 10,000
  • Output Flow Rate (in3/min) No Load: 77
  • Output Flow Rate (in3/min) Load: 13
  • Air Pre Range (psi): 40-100
  • Air Consumption (scfm): 10
  • Sound Rate (dba): 85
  • Oil Port: 3/8 NPTF
  • Ship Wt.: 21 lbs.

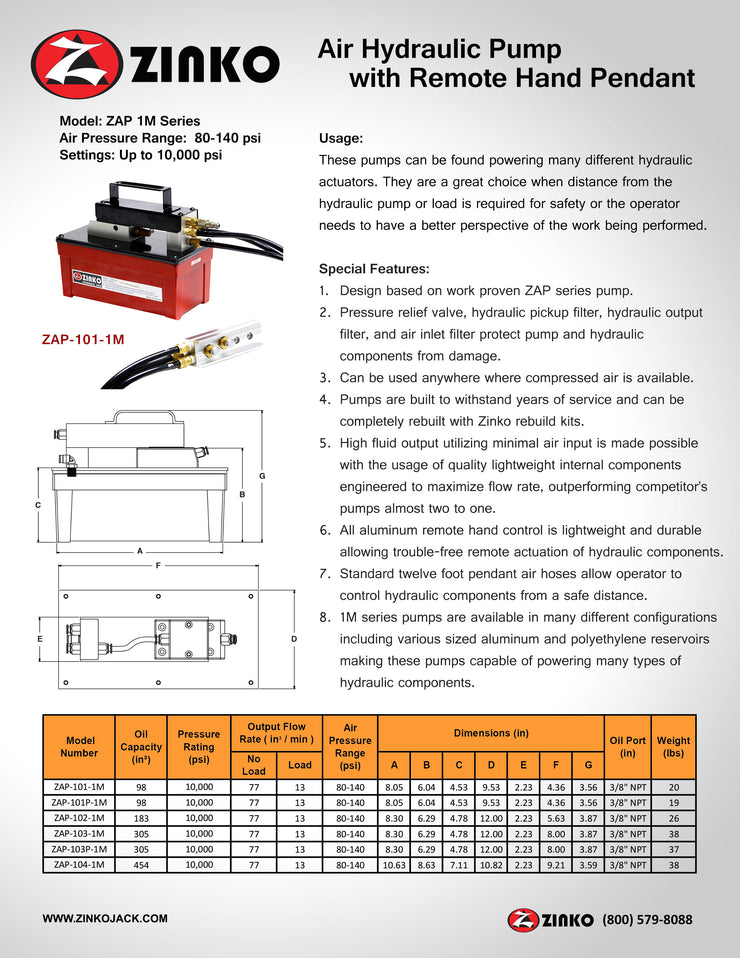

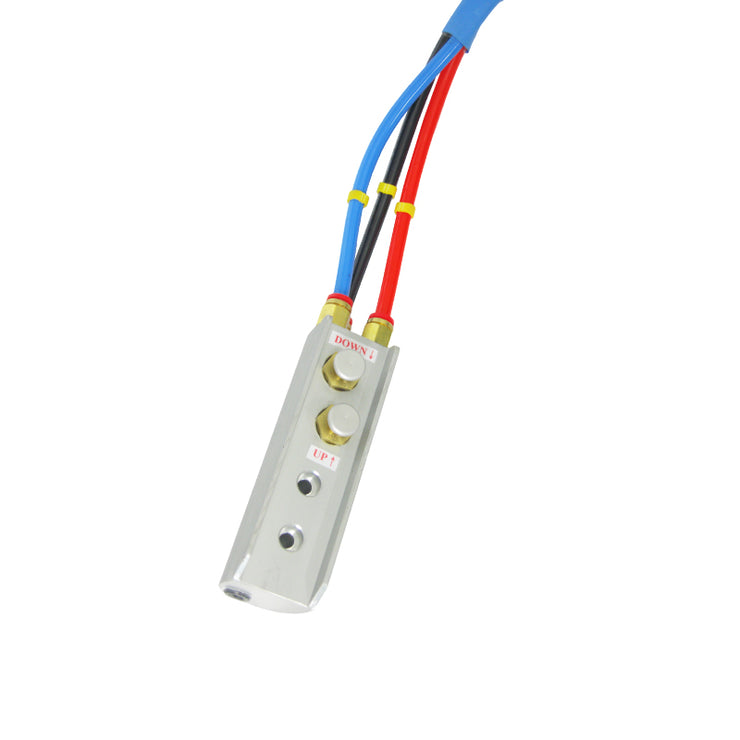

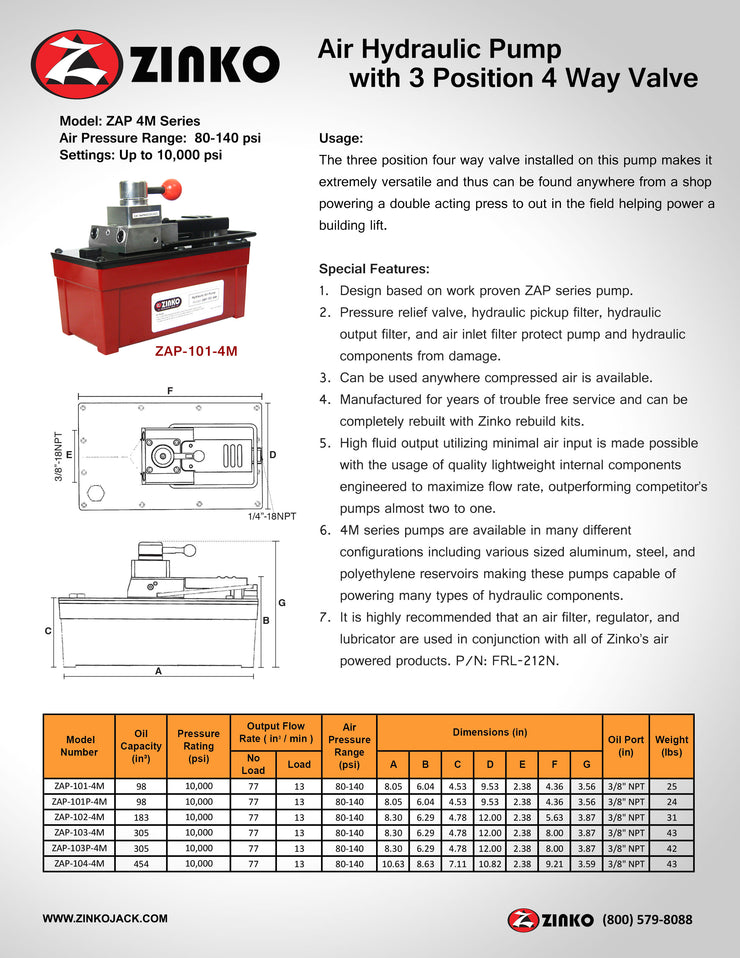

  • Options: 3-way valve or 4-way 3-position valve with remote control hand pendant available upon request. (Item no. 22-101-1M or 22-101-4M)

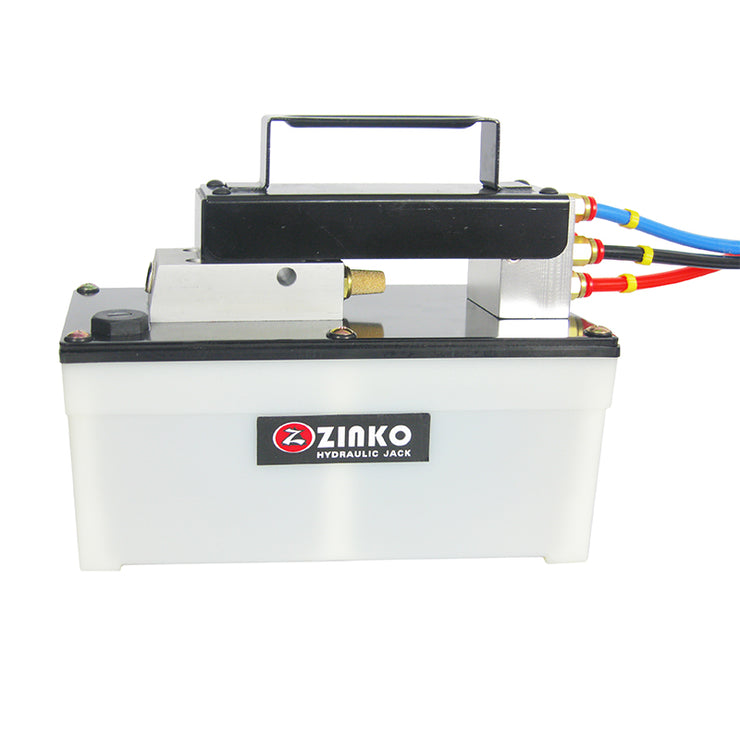

  • Options: Reservoir with see through windows, or plastic reservoir will be available upon request. (Item no. 22-101V or 22-101P)

Download Here:

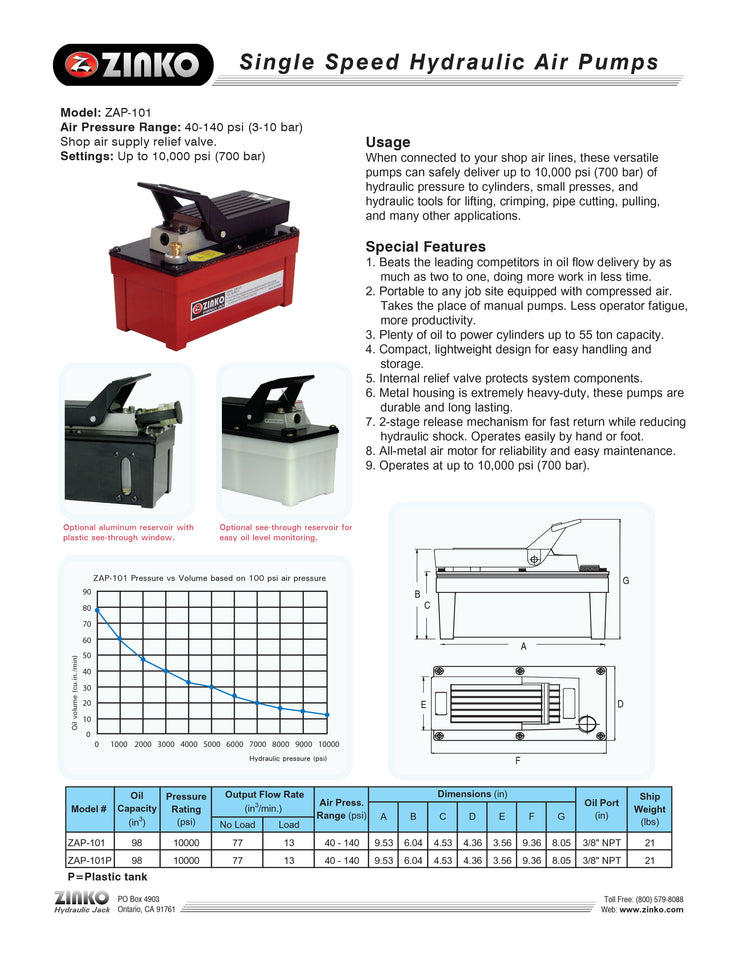

User ManualsSpec Sheets
