ZRM-010: 10 TON 0.44"

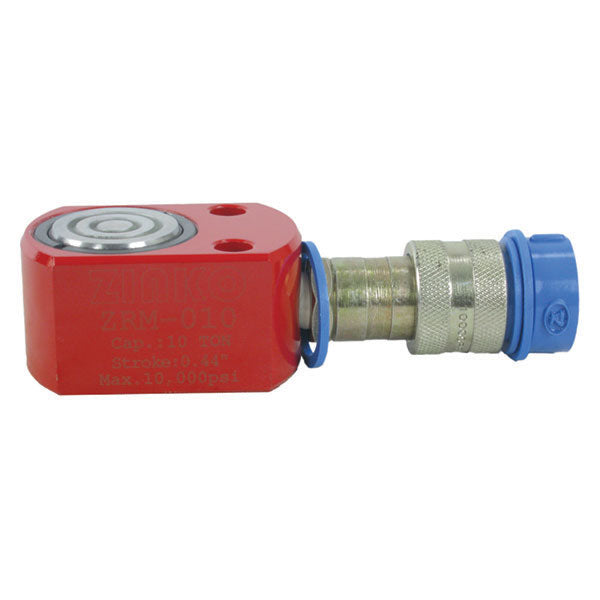

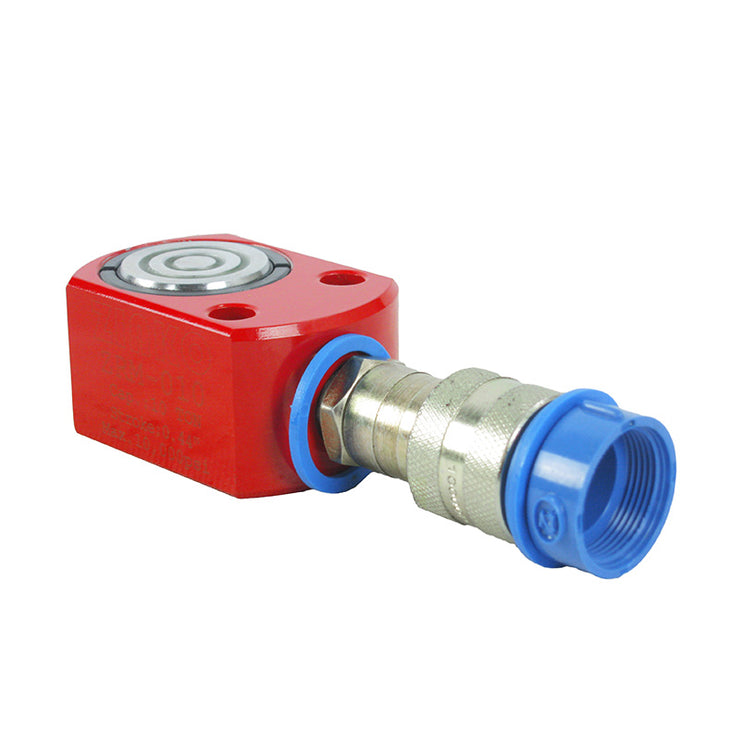

The Zinko ZRM-010 doubles the lifting capacity of the 5-ton model while maintaining a remarkably slim silhouette. Weighing only 5 lbs, this rugged 10-ton cylinder collapses to a low 1.69" height and offers a 0.44" stroke to provide heavy hydraulic power right where space is at a premium. Designed to operate reliably at any angle, it includes convenient base mounting holes for easy installation and a specialized grooved plunger end that locks onto loads safely without requiring a separate saddle. A high-flow 3/8" NPT coupler and protective dust cap come standard.

Multiple application for many different fields that require single-acting cylinder.

• Capacity: 10 Ton
• Stroke: 0.47"
• Oil Capacity: 1.09in³
• Min Ht: 1.69"
• Max Ht. 2.16"
• Outside Diameter (in): 3.22" X 2.16"

• Cylinder Effec. Area: 2.24in²
• Ship Wt.: 5 lbs.
