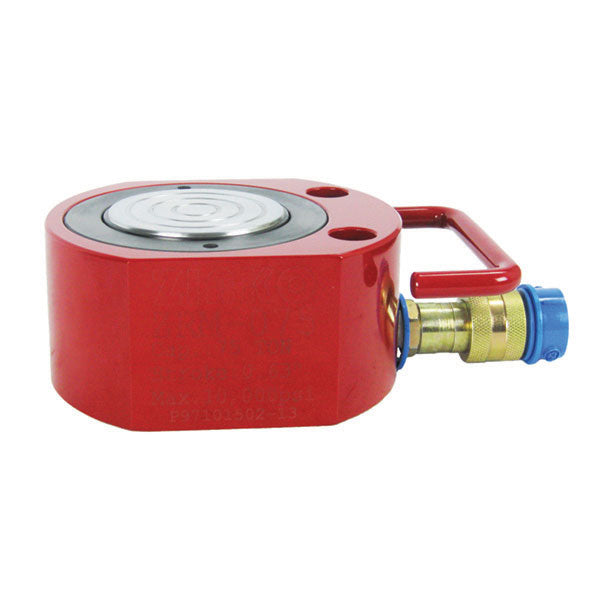

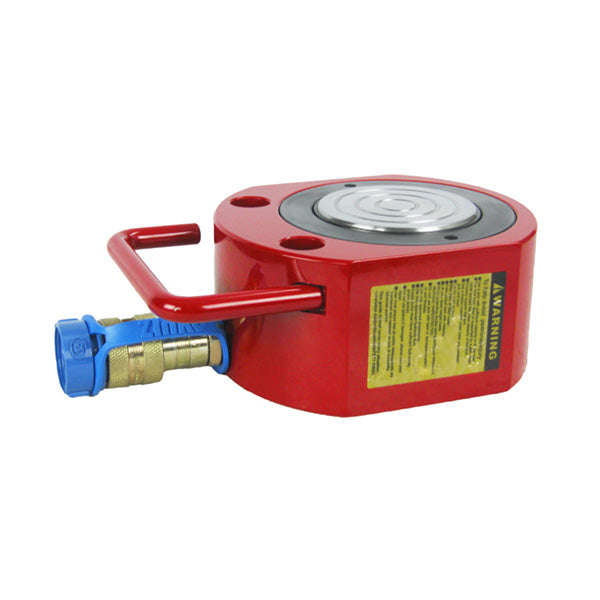

ZRM-075: 75 TON 0.63"

The Zinko ZRM-075 provides 75 tons of single-acting lifting capacity for high-tonnage applications with restricted vertical clearance. This cylinder collapses to a minimum height of 3.11" and extends to 3.74" via a 0.63" stroke, allowing operators to position heavy force precisely in narrow gaps. Weighing 27 lbs, the unit is designed to function effectively at any angle and features integrated base mounting holes for fast anchoring to specialized work fixtures. Its grooved plunger end grips heavy or slick loads securely to prevent slippage under intense pressure, eliminating the need for a separate saddle. Each cylinder comes equipped with a standard 3/8" NPT fast-flow coupler and a protective dust cap.

Multiple applications for many different fields that require single-acting cylinders.

• Capacity: 75 Ton
• Stroke: 0.63"
• Oil Capacity: 10.00in³
• Min Ht: 3.11"
• Max Ht. 3.74"
• Outside Diameter (in): 6.50" X 5.50"

• Cylinder Effec. Area: 15.90in²
• Ship Wt.: 27 lbs.
