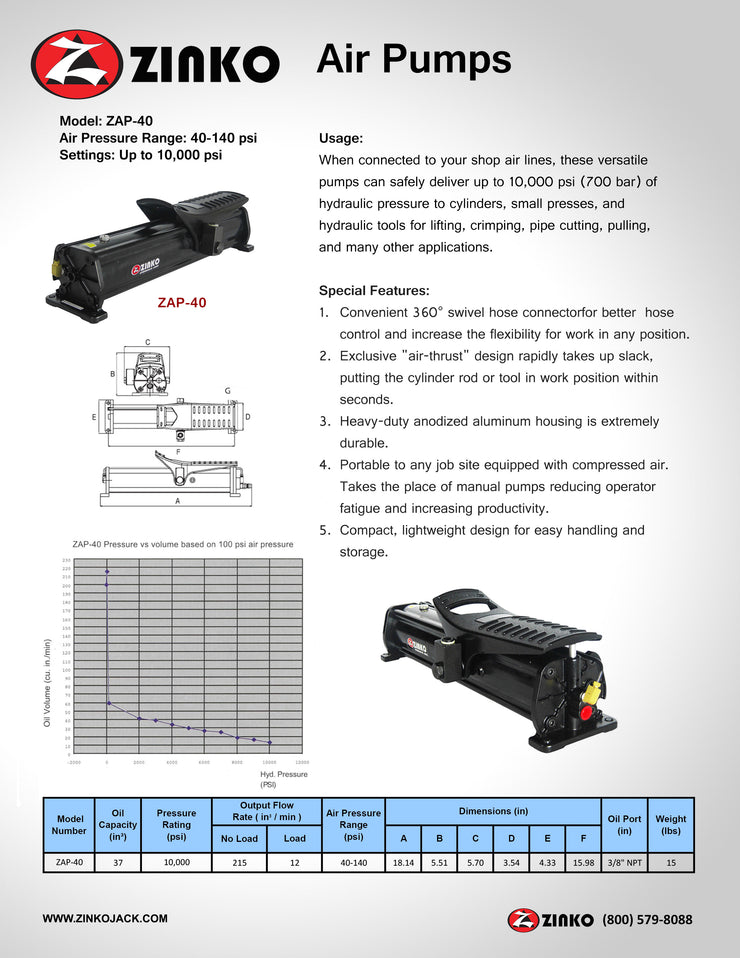

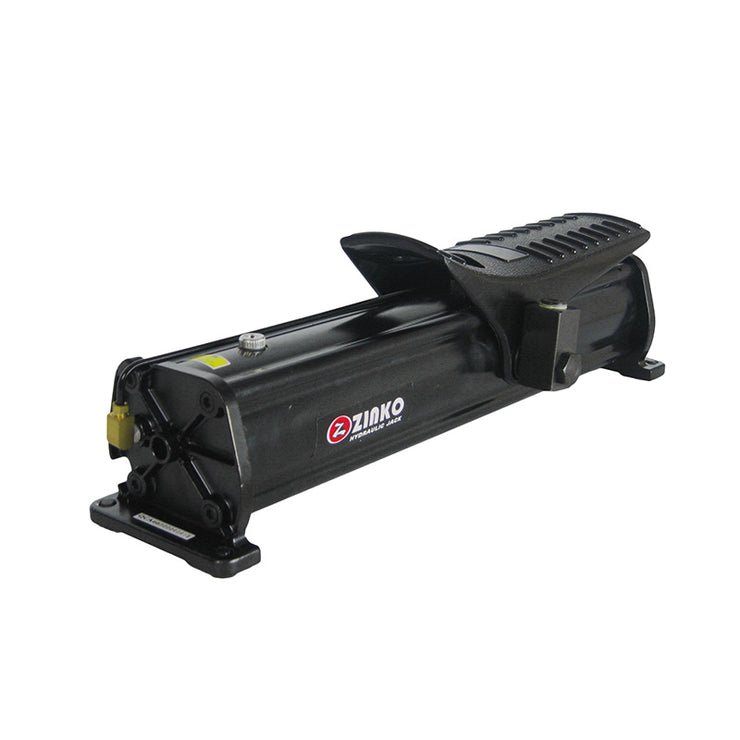

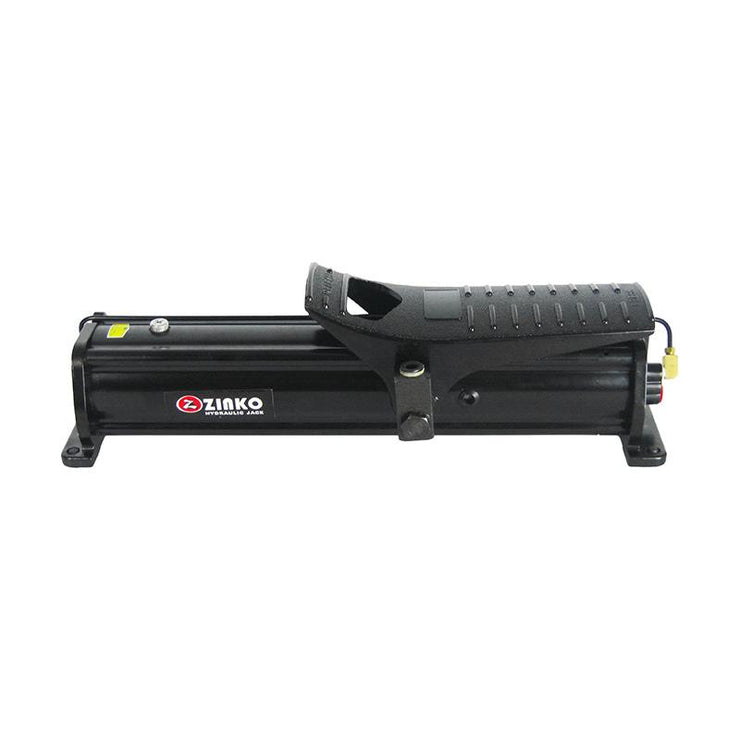

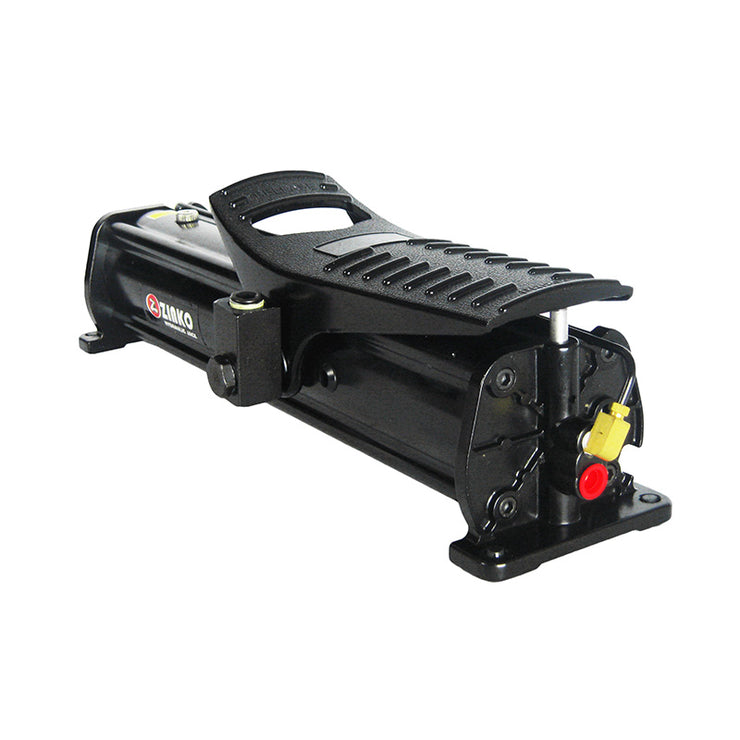

HYDRAULIC AIR PUMP
MODEL: ZAP-40

$355.91

Availability : In Stock

Shipping : Ships same-day or 1-2 business days

Single Speed Air Pump, operating at up to 10,000 psi.
Operate on shop air to drive a variety of single acting rams, presses and hydraulic pullers.

    1. Exclusive "air-thrust" design rapidly takes up slack, putting the cylinder rod or tool in work position within seconds.
    2. Convenient 360 degree swivelhose connector for better hose control and increase the flexibility for work in any position.
    3. Compact, ligh-weight design for easy handling and storage.




  • Oil Capacity (in3): 37
  • Pressure Rating (psi): 10,000
  • Output Flow Rate (in3/min) No Load: 215
  • Output Flow Rate (in3/min) Load: 12
  • Air Pre Range (psi): 40-140
  • Oil Port: 3/8 NPTF
  • Ship Wt.: 15 lbs.
